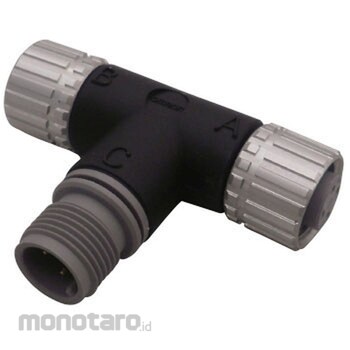

OMRON Round Waterproof Connector (M12) T Joint Plug/Socket XS2 XS2R-D422-1 Light Grey 1pc

Name: OMRON Round Waterproof Connector (M12) T Joint Plug/Socket XS2 XS2R-D422-1 Light Grey 1pc
Brand: OMRON
SKU: S032272048
Price: 599900 IDR
Availability: InStock

#Nomor SKU S032272048

Wishlist

0 Ulasan

Spesifikasi Produk

Model Number	XS2R-D422-1
Unit	1pc
Protection Class	IP67 (IEC529)
Withstand Voltage (V/minute)	AC 1500 1 (connector leak current 1mA or less)
Contact Resistance (miliΩ)	40 or less (Connector part: 20mV or less, 100mA or less)
Operating Temperature Range (°C)	-25 to 70
Type	Set type
Color	Contact block: Light Grey
Insertion/Removal Durability (times)	200 or more
Operating Humidity Range (%RH)	20-85
Material (O-ring)	Rubber
Assembly section fixing Strength	(Tensile) 98N/15s, (rotation) 0.98Nm/15s
Material (Contact Block)	PA resin (UL94V-O)
Material (Fixing Tool)	Brass
Surface Treatment	contact/Ni underground gold plating 0.4μm; Fixture/Ni plating
Rated Voltage (V)	DC 250
Rated Current (A)	4
Insulation Resistance (MΩ)	10³ or more (at 500 VDC)
Contact Material	Brass
Power Supply	For DC
M Code	34813231
Berat (Kg)	0.1
Tanggal Produk Terdaftar	28 June 2022
Terakhir Diperbaharui	01 April 2026

Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini

Informasi Produk

Description

Waterproof connector for FA pursuing reduced man-hours, maintenance and environmental resistance.
Compliant with IP67. Compact connector for FA that achieves 94V-0 flame resistance.
Wiring system connector makes facility maintenance easier and reduces facility downtime.

Warning

Carefully consider the wiring diagram of the sensor used and the internal connection diagram of the XS2R before use.
