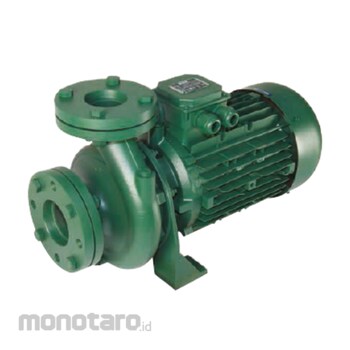

DAB Italy Single Impeller Centrifugal Pump K 40/400T 1unit
Rp29.999.900
Persediaan
Spesifikasi Produk
| Model Number | K 40/400T |
|---|---|
| Unit | 1unit |
| Motor Power P2 (kW) | 5.5 |
| Maximum Suction (m) | 6 |
| Total Head Max. (m) | 50 |
| Maximum Capacity (L/minute) | 500 |
| Inlet & Outlet Pipe (inch) | 2 1/2 & 2 |
| Code | 60180172 |
| Berat (Kg) | 79.1 |
| Tanggal Produk Terdaftar | 27 May 2022 |
| Terakhir Diperbaharui | 27 May 2025 |
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Deskripsi
Pompa single impeller centrifugal dapat digunakan untuk aplikasi rumah tangga, industri dan pertanian.
Description
Single impeller centrifugal pump suitable for domestic, civil, industrial
and agricultural installations and for decanting, mixing and irrigating
uses. Cast iron pump body and motor support. Technopolymer impeller.
Stainless steel driving shaft. Carbon/ceramic mechanical seal.
Asynchronous, closed motor, cooled by external ventilation. Built-in
thermal and current overload protection and a capacitor permanently
on in the single-phase version. For the protection of the three-phase
motor it is advisable to use a suitable overload protection complying
with the regulations in force.
and agricultural installations and for decanting, mixing and irrigating
uses. Cast iron pump body and motor support. Technopolymer impeller.
Stainless steel driving shaft. Carbon/ceramic mechanical seal.
Asynchronous, closed motor, cooled by external ventilation. Built-in
thermal and current overload protection and a capacitor permanently
on in the single-phase version. For the protection of the three-phase
motor it is advisable to use a suitable overload protection complying
with the regulations in force.
Fitur
BahasaFeature
- Operating range from 1,8 to 96 m3/h with headup to 62 metres.
- Pumped liquid characteristics clean, free from
solids or abrasive substances, not viscous, not
aggressive, not crystallised, chemically neutral and
close to the characteristics of water.
- Liquid temperature range
from -10°C to +50°C: for K 20/41, K 30/70,
K 30/100, K 36/100, K 12/200, K 36/200,
K 40/200.
from -15°C to +110°C: for the other pups.
- Maximum operating range
K 20/41, K 30/70, K 30/100, K 36/100,
K 12/200, K 14/400:6 bar (600 kPa)
K 36/200, K 40/200, K 55/200, K 11/500,
K 18/500, K 28/500:8 bar (800 kPa)
K 40/400, K 50/400, K 30/800, K 40/800,
K 50/800,
K 20/1200, K 25/1200, K 35/1200: 10 bar
(1000 kPa)
- Maximum ambient temperature +40°C.
- Protection level IP 44.
- Terminal board protection level IP 55.
- Insulation class F.
