The DS models are a volumetric type piston distributor, utilizing the pistons interna; spring pressure to distribute a pre-measured amount of oil from each port.
Although the DS are based upon the DSB & DSA Dester Blocks, the DS are far more compact and are able to distribute smaller quantities of oil higher levels of precision.

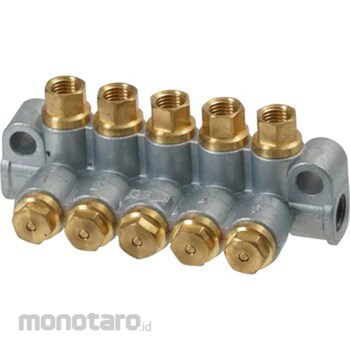

Showa Corp. Dester Block DS8Z-5 Compact Plus Indicator 1pc
Rp2.199.900
Persediaan
Spesifikasi Produk
| Model Number | DS8Z-5 |
|---|---|
| Unit | 1pc |
| Number of Outlet Ports | 8 |
| Dimension A (mm) | 118 |
| Dimension B (mm) | 131 |
| Discharge Volume per Port (cm³/stroke) | 0.1 |
| Operating Pressure (MPa) | 1 to 3 |
| Connection Size - Inlet Port | M10x1.0 |
| Connection Size - Outlet Port | M8x1.0 |
| Indicator Pin Dimension (L) (mm) | 5.0 |
| Applicable Piping Out | Ø4 |
| Berat (Kg) | 6.5 |
| Tanggal Produk Terdaftar | 22 April 2022 |
| Terakhir Diperbaharui | 27 May 2025 |
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Feature
- Dester Block with visual indicators to confirm operation- Discharge volumes of 0.03cm³, 0.05cm³, 0.08cm³, and 0.1cm³ per stroke available
