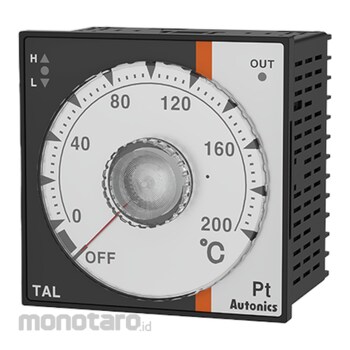

Autonics Temperature Controllers Standard Type TA Series TAL-B4SP2C 1pc
Rp469.900
Persediaan
Spesifikasi Produk
| Model Number | TAL-B4SP2C |
|---|---|
| Unit | 1pc |
| Certification | CE |
| Setting Range | 0-200 |
| Control Output | SSR drive (12VDC) (ON/OFF) |
| Sampling Cycle (ms) | 100 |
| Control Method | ON/OFF control; PID control |
| Size (LxT) (mm) | DIN 96x96 |
| Environment Temperature Level (°C) | -10 to 50, enclosed space: -20 to 60 |
| Input Spesification | RTD: DPt100Ω |
| Humidity Level | 35-85%RH, enclosed space: 35-85%RH |
| Insulation Type | Insulasi ganda atau insulasi yang diperkuat (mark:, dielectric strength di antara pengukuran bagian input dan bagian daya: 2kV) |
| Setting Type | Dial setting |
| Temperature Unit | °C |
| Setting Accuracy | F.S. ±2% (room temperature 23°C±5°C) |
| Power Supply (V/Hz) | 100-240 AC/ (50/60) |
| Display Method | Non-display |
| Berat (Kg) | 0.2 |
| Tanggal Produk Terdaftar | 18 April 2022 |
| Terakhir Diperbaharui | 27 May 2025 |
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
The TA series temperature controllers offer simple and accurate temperature control with analog dial. The controllers are capable of auto-tuning PID temperature control and ON/OFF control, toggled through an external switch. The LED deviation and control output indicators provide clear status display.
Warning
Setting accuracy: Below 100 ℃ model is F.S. ±3%Below 100℃ model is F.S. ±4%, Over 100℃ model is F.S. ±3%
The weight includes packaging. The weight in parenthesis is for unit only.
Environment resistance is rated at no freezing or condensation.Image on this page only as Representative Image, Please check the specifications of each size and color for details
