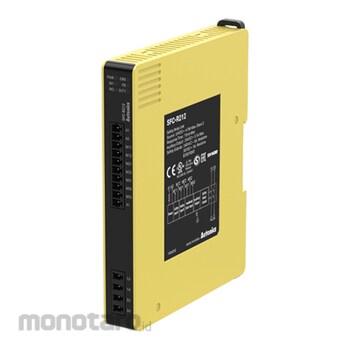

Autonics Safety Controllers Relay Units SFC-R Series SFC-R212 1pc
Rp2.299.900
Persediaan
Spesifikasi Produk
| Model Number | SFC-R212 |
|---|---|
| Unit | 1pc |
| Power Supply (V) | 24 DC |
| Power Consumption (W) | 4 |
| Load current (mA) | Max. 100 |
| Leakage Current (mA) | ≤ 0.1 |
| Sub Output | 1 x PNP transistor: X1 |
| Input Time (ms) | ≥ 50, feedback start (manual) : ≥ 100 |
| Cable (m) | ≤ 100 (≤ 100Ω, ≤ 10nF) |
| Safety Output | Relay (A contact) |
| Instantaneous | 2x |
| Capacity (V-A) | 240 AC- 5, 30 DC-5 |
| Inductive Load Switching (V/A) | IEC60947-5-1: AC-15 (230/2) |
| International Standards | IEC/EN 61508 (SIL3), IEC/EN 62061 (SILCL3) IEC/EN 60947-5-1, EN ISO 13849-1 (Category 4, PLe) UL listed E249635 |
| Contact resistance | ≤ 100mΩ |
| Life Expectancy (operations) | Mechanical: ≥ 10000000 Malfunction: ≥ 50000 |
| Allowable Voltage Range | 85 to 110% of rated voltage |
| Input (V/mA) | ON: ≥11 DC/≥5, OFF: ≤ 5 DC/≤1 |
| Conditional Short Circuit Current (A) | 100 |
| Berat (Kg) | 0.1 |
| Tanggal Produk Terdaftar | 18 April 2022 |
| Terakhir Diperbaharui | 27 May 2025 |
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
The SFC-R series safety controllers are used together with safety input devices (switches, sensors, etc.) to provide safe working environments. The controllers feature self-diagnosis function and safety integrity to meet safety standards. The space-saving slim design and screw or screw-less push-in connection allows easy installation.
Warning
Image on this page only as Representative Image, Please check the specifications of each size and color for detailsKetentuan dan Kondisi Barang
