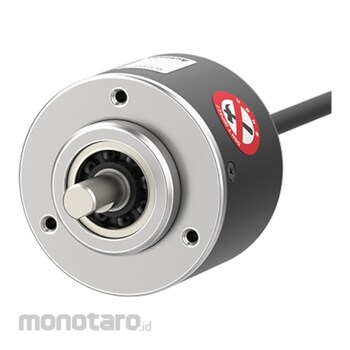

Autonics Rotary Encoders Incremental Type E50S Series E50S8-120-3-N-24 1pc

Name: Autonics Rotary Encoders Incremental Type E50S Series E50S8-120-3-N-24 1pc
Brand: Autonics
SKU: S031189569
Price: 1099900 IDR
Availability: OutOfStock

#Nomor SKU S031189569

Wishlist

0 Ulasan

Spesifikasi Produk

Model Number	E50S8-120-3-N-24
Unit	1pc
Certification	CE
Power Supply (V)	12-24 DC ±5% (ripple P-P: Max. 5%)
Control Output	NPN open collector
Standard Protection	IP50
Connection Type	Axial Cable type
Environment Temperature Level (°C)	-10 to 70, enclosed space: -25 to 85
Humidity Level	35-85%RH, Enclosed space: 35-90%RH
Accessories	Bracket, coupling Ø8mm
Maximum Frequency Response (kHz)	300
Maximum Allowed Resolution (rpm)	5000
Starting Torque (gf.cm)	Max. 70 (Max. 0.00686N.m)
Resolution	120P/R
Output Phase	A, B, Z
Outer Shaft Diameter (mm)	8
Berat (Kg)	0.3
Tanggal Produk Terdaftar	18 April 2022
Terakhir Diperbaharui	27 May 2025

Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini

Informasi Produk

Description

The E50S series incremental rotary encoders feature Ø50 mm size housings and provide accurate measurement of angle, position, revolution, speed, acceleration, and distance. The encoders are available in cable type, cable connector type, and axial/radial connector types along with various control output options.

Warning

Make sure that max. response revolution should be lower than or equal to max. allowable revolution when selecting the resolution.
[Max. response revolution (rpm)=Max. response frequency/Resolution × 60 sec]
In case of axial cable type, axial cable connector type, they are available to order the option protection structure IP64.
The weight includes packaging. The weight in parenthesis is for unit only.
Environment resistance is rated at no freezing or condensation.Image on this page only as Representative Image, Please check the specifications of each size and color for details
