Autonics Rotary Encoders Incremental Type E100H Series E100H35-1024-3-T-24 1pc

Name: Autonics Rotary Encoders Incremental Type E100H Series E100H35-1024-3-T-24 1pc
Brand: Autonics
SKU: S031186841
Price: 4599900 IDR
Availability: InStock

#Nomor SKU S031186841

Autonics

Wishlist

0 Ulasan

Spesifikasi Produk

Model Number	E100H35-1024-3-T-24
Unit	1pc
Certification	CE
Power Supply (V)	12-24 DC ±5% (ripple P-P: Max. 5%)
Control Output	Totem pole
Standard Protection	IP50
Connection Type	Radial connector type
Environment Temperature Level (°C)	-10 to 70, enclosed space: -25 to 85
Humidity Level	35-85%RH, Enclosed space: 35-90%RH
Accessories	Bracket: 2, Connector cable
Inner Shaft Diameter (mm)	Ø35
Maximum Frequency Response (kHz)	300
Maximum Allowed Resolution (rpm)	3600
Starting Torque (gf.cm)	Max. 300 (max. 0.0294N.m)
Resolution	1024P/R
Output Phase	A, B, Z
Berat (Kg)	1.4
Tanggal Produk Terdaftar	18 April 2022
Terakhir Diperbaharui	27 May 2025

Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini

Informasi Produk

Description

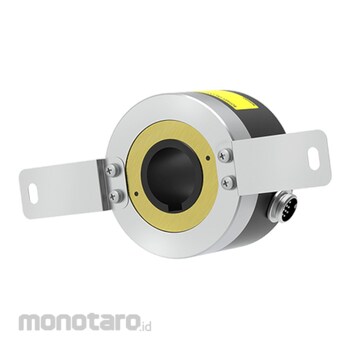

The E100H series incremental rotary encoders feature Ø100 mm size housings with Ø35 mm hollow shafts. The encoders are sturdy and durable and are ideal of application in elevator systems. Various models are available by resolution and control output options.

Warning

Make sure that max. response revolution should be lower than or equal to max. allowable revolution when selecting the resolution.
[Max. response revolution (rpm) = Max. response frequency/Resolution × 60sec]
The weight includes packaging. The weight in parenthesis is for unit only.
Environment resistance is rated at no freezing or condensation.
Sold separately: Connector cableImage on this page only as Representative Image, Please check the specifications of each size and color for details
