TIMKEN Tapered Roller Bearings Tapered Single 6580/6535-SET 124 1pc

Name: TIMKEN Tapered Roller Bearings Tapered Single 6580/6535-SET 124 1pc
Brand: TIMKEN
SKU: S030931930
Price: 2099900 IDR
Availability: OutOfStock

#Nomor SKU S030931930

Wishlist

0 Ulasan

Spesifikasi Produk

Model Number	6580/6535-SET 124
Unit	1pc
Design Unit	Inch
da - Cone Frontface Backing Diameter (mm)	102
db - Cone Backface Backing Diameter (mm)	117
Da - Cup Frontface Backing Diameter (mm)	154.43
Db - Cup Backface Backing Diameter (mm)	140.97
Ab - Cage-Cone Frontface Clearance (mm)	1.5
a - Effective Center Location (mm)	-13.2
C90 - Dynamic Radial Rating (90 million revolutions) (N)	114000
C0 - Static Radial Rating (N)	523000
Ca90 - Dynamic Thrust Rating (90 million revolutions) (N)	78100
Aa - Cage-Cone Backface Clearance (mm)	3.8
Cage Material	Stamped Steel
d - Bore (mm)	88.9
D - Cup Outer Diameter (mm)	161.925
B - Cone Width (mm)	55.1
C - Cup Width (mm)	42.863
T - Bearing Width (mm)	53.978
R-Cone Backface To Clear Radius (mm)	3.6
r-Cup Backface To Clear Radius (mm)	3.3
Berat (Kg)	0.7
Tanggal Produk Terdaftar	25 February 2022
Terakhir Diperbaharui	27 May 2025

Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini

Informasi Produk

Description

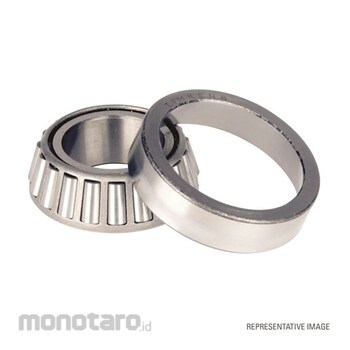

This is the most basic and most widely used type of tapered roller bearing. It consists of two main separable parts: the cone (inner ring) assembly and the cup (outer ring). It is typically mounted in opposing pairs on a shaft.

Warning

- Please confirm the size information and other product details on Attribute Information then place an order.
- Image on this page only as Representative Image.
