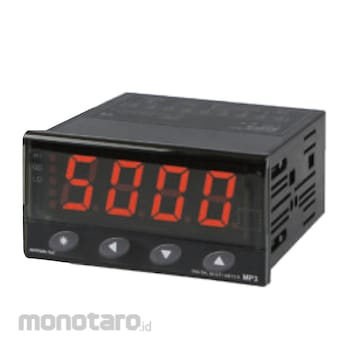

Hanyoung Panel Meter MP3-4-DV-NA 1pc

#Nomor SKU S030461826

Spesifikasi Produk

Model Number	MP3-4-DV-NA
Unit	1pc
Dimension (WxHxD) (mm)	96.0x48.0x102.6
Distinguished (Type)	Front Case: Acrylic Type
Max. Display Digits	4 Digits (-1999 - 9999)
Measurement Input Specification	DC VOLT
Relay Output	1 cx3 contacts(HI, GO, LO)
Sampling Cycle (ms)	DC type : 100, AC type : 300
Response Speed (s)	Approx. 0.3
Accuracy	AC : ±0.5 % of FS ±1 Digit, DC : ±0.2 % of FS ±1 Digi
Insulation Resistance (MΩ)	Min. 100 (500V d.c., Mega standard) between external terminal and case
Dielectric Strength	2000V a.c. for 1 min (between external terminal and case)
Power Voltage (V)	AC: 100-240 a.c. 50/60Hz(Allowable voltage fluctuation range: ±10 %); DC: 24 d.c. (Allowable voltage fluctuation range: ±10 %)
Power Consumption	AC: 5VA; DC: 5W
Relay Life	Mechanical : 20000000ps Min; Electrical : 100000ps Min
Vibration Resistance	50/60Hz, Pile width 0.5mm, X.Y.Z Malfuction: each direction 1 hours; Durability: each direction 2 hours
Shock Resistance	Malfuction: 100, X.Y.Z 3 times each direction; Durability: 300, X.Y.Z 3 times each direction
Ambient Temperature (°C)	-10 - 55
Ambient Humidity	35 - 85% RH (Without condensation)
Storage Temperature (°C)	-20 - 65
Berat (Kg)	0.2
