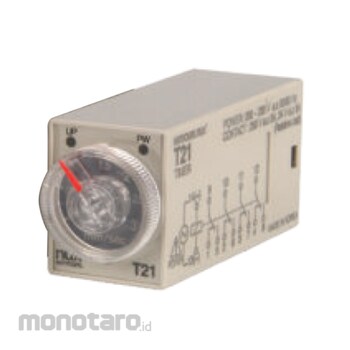

Hanyoung Counter/Timer T21-1-4D24 1pc
Rp159.900
Persediaan
Spesifikasi Produk
| Model Number | T21-1-4D24 |
|---|---|
| Unit | 1pc |
| Power Voltage (V) | 24 d.c. |
| Allowable Voltage Fluctuation Rate | ±10% of power voltage |
| Power Consumption | Max. 1.5W (24V d.c.) |
| Return Time (ms) | Max. 100 |
| Time Range | 0.1sec - 10min |
| Time Error | Repetition error: ±1 % max. (ratio of maximum scale); Setting error: ±10 % max. (ratio of maximum scale) |
| Relay Life | Mechanical life : min. 10million times; Electrical life : min. 100000 times |
| Insulation Resistance (MΩ) | Min. 100 (500 V d.c. standard, conductive terminal - exposed unfilled metal part) |
| Dielectric Strength (V) | 2000 a.c. 50/60Hz for 1min (conductive terminal - exposed unfilled metal part) |
| Vibration Resistance | 10 - 55Hz (For 1 min) double amplitude 0.75mm X.Y.Z each direction 1 hour |
| Shock Resistance (m/s) | 300 X.Y.Z each direction 3 times |
| Ambient Temperature (°C) | -10 - 50 |
| Ambient Humidity | 35 - 85% RH (Without condensation) |
| Storage Temperature (°C) | -25 - 65 |
| Berat (Kg) | 0.1 |
| Tanggal Produk Terdaftar | 14 January 2022 |
| Terakhir Diperbaharui | 27 May 2025 |
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Feature
- Timing Relay (time limit 4c)- Plug-in type (14 pins)
- Time range and operation mode customizable by the user
- Several time ranges
- Multi operation mode
