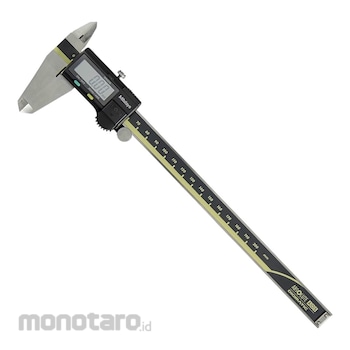

Mitutoyo Digital Caliper (Jangka Sorong) 500-157-30 CD-20AXWW 0-200mm 1pc

Name: Mitutoyo Digital Caliper (Jangka Sorong) 500-157-30 CD-20AXWW 0-200mm 1pc
Brand: Mitutoyo
SKU: S030188006
Price: 5199900 IDR
Availability: InStock
Rating: 100 (6 reviews)

#Nomor SKU S030188006

Wishlist

Rating:

100% of 100

(6)

6 Ulasan

Spesifikasi Produk

Model Number	500-157-30
Unit	1pc
Units	Metric
SPC Output	Yes
Range (mm)	0-200
Resolution (mm)	0.01
Accuracy (mm)	±0.02
Repeatability (mm)	0.01
Remarks	Carbide-tipped jaws for OD & ID measurement
Battery	SR44 (1 pc.) 938882
Battery Life	Approx. 5 years under normal use
Display	LCD
Length Standard	ABSOLUTE electromagnetic induction type linear encoder
Maximum Response Speed	Unlimited
Optional Accessories	959143, 959149, 959150
Technology	Digimatic
Mitutoyo Part Number	CD-20AXWW
M Code	87148214
Berat (Kg)	1.0
Tanggal Produk Terdaftar	13 December 2021
Terakhir Diperbaharui	21 January 2026

Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini

Informasi Produk

Description

The Mitutoyo ABSOLUTE digital caliper delivers accurate, repeatable outside dimension, inside dimension, depth and step measurements with accuracy and unrestricted speed. The caliper’s slide and jaws are constructed of hardened stainless steel with optional carbide-tipped jaws available. The impact-resistant, easy-to-ready LCD display is highly durable and provides large character height (9.0mm in height) which improves readability.

Feature

'- Available in Metric and Inch/Metric models
- Available with or without SPC output capabilities
- Carbide-tipped jaws are available
- Thumb roller included only on calipers up to and including 300mm/12” models
- ABSOLUTE (ABS) linear scale eliminates the need for setting the origin point every time the micrometer is powered on; overspeed errors are also eliminated
- Stainless steel construction protects caliper components and ensures accurate performance for longer duration
- SPC output function allows for quick and easy data management in real time
- Functions include Origin Set, Zero-Setting, Data Output and inch/mm conversion (on inch/metric models only)
- Alarm: Low Voltage, counting value composition error
- Supplied in a fitted plastic case; 1000mm/40” model is supplied in a wooden case

Use

Function:
- ABS (absolute) measurement function
- INC (incremental) measurement function low battery voltage alarm
- Measurement data output function
- Hold function (display value can be held by using optional hold unit.
- Cannot be used in conjunction with output function.)
