High-capacity, compact pushbutton switch Can be used as a power switch that requires high-capacity cutoff.
Open and close from minute loads (minimum applicable load DC5V 1mA) to high capacity loads.

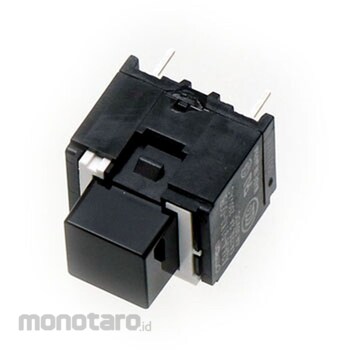

OMRON Small Pushbutton Switch (Square) (Small Square Body) A3A A3AA-91K1-00B 1pc
Rp63.900
Persediaan
Spesifikasi Produk
| Model Number | A3AA-91K1-00B |
|---|---|
| Unit | 1pc |
| Electrical Durability | 50,000 times or more |
| Impact Resistance Durability (m/s²) | 500 |
| Contact Resistance (miliΩ) | 100 or less (initial value) |
| Withstand Voltage | Between homopolar terminals: AC600V 50 / 60Hz 1min / Between each terminal and ground: AC2000V 50 / 60Hz 1min |
| Insulation Resistance (MΩ) | 100 or more (with DC500V mega) |
| Storage Temperature (°C) | -25 to +65 (with no icing or condensation) |
| Operating Ambient Temperature (°C) | -10 to +55 (with no icing or condensation) |
| Button Color | Black |
| Terminal Shape | Printed circuit board terminal |
| Allowable Operation Frequency | Mechanical: 120 times / min max., Electrical: 20 times / min |
| Protection Class | IP40 |
| Mechanical Durability | 1,000,000 times or more |
| Type of Operation | Momentary |
| Button Shape | Square |
| Contact Configuration | 1a |
| Type | Non-illuminated Type |
| Ambient Relative Humidity (RH) | 35 to 85 |
| Vibration Resistance (Malfunction) | 10 to 55Hz, double amplitude 1.5mm (malfunction 1ms) |
| M Code | 39010955 |
| Berat (Kg) | 0.2 |
| Tanggal Produk Terdaftar | 23 November 2021 |
| Terakhir Diperbaharui | 04 April 2026 |
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Feature
High capacity, compact push button switch Available as a power supply that requires high capacity.
Open and closes to high capacity load from micro-load (minimum application load DC5V 1 MA) .
