Providing a comprehensive lineup of standard safety limit switches globally.
Contact configurations include 1NC/1NO, 2NC, 2NC/1NO, and 3NC. (Slow action has MBB specification)
A lineup of M12 connector types that save labor and facilitate replacement work.
Standardly adopted Au clad contact with high contact reliability.
Applicable to both general load and minute load.
Compatible with EN115, EN81-1, and EN81-2. (Slow action type only)
Acquired UL, EN (TUV) , and CCC standards.

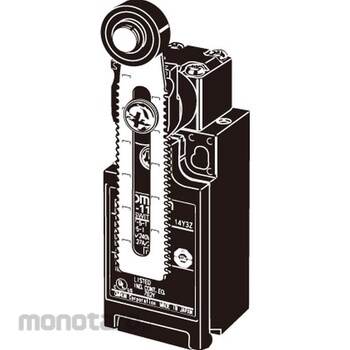

OMRON Compact Safety Limit Switch 2-Contact Series (with Direct Opening Operation) D4N D4N-922G 1pc
Rp609.900
Persediaan
Spesifikasi Produk
| Model Number | D4N-922G |
|---|---|
| Unit | 1pc |
| Internal capacity | 1 piece |
| Type Of Actuator | Variable roller / lever type / foam lock type (metal lever, resin roller) |
| Conduit mouth size | M12 Connector (1 conduit Type) |
| Product Number | D4N-922G |
| Rated Insulation Voltage (V) | (Ui) 300 |
| Built-in Switch | 2NC (Snap Action) |
| Protection Class | IP67 (EN60947-5-1) |
| Rated Frequency (Hz) | 50/60 |
| Insulation Resistance (MΩ) | over 100 |
| Operating Ambient Temperature (°C) | -30 to +70 (however, do not freeze) |
| Contact Resistance (miliΩ) | 25 or less |
| Impact Resistance Durability (m/s²) | 1000 |
| Ambient Relative Humidity (RH) | 95 or less |
| Vibration Resistance (Malfunction) | 10-55Hz One-sided amplitude 0.75mm |
| Impact Resistance Malfunction (m/s) | 300 |
| Mechanical Durability (times) | 15 million or more |
| Minimum Applicable Load (V-mA) | DC5V-1 resistance load (N level reference value) |
| Shock Resistance Malfunction (m/s²) | 300 |
| Allowable Operating Speed (mm/s) | 1 to 500 (D4N-1120) |
| Electrical Durability | 500,000 operations or more (250 VAC, 3 A, resistance load), 300,000 operations or more (250 VAC, 10 A, resistance load) |
| Electric Shock Protection Class | Class II (double insulation) |
| Rated Impulse with Stand Voltage (kV) | Between same pole terminals: 2.5 Between different pole terminals: 4 Between each terminal and non-charged metal part: 6 |
| Pollution Degree (Environment to Use) | Pollution degree 3 (EN60947-5-1) |
| Open thermal Current (A) | 10(EN60947-5-1) |
| M Code | 46518157 |
| Berat (Kg) | 0.5 |
| Tanggal Produk Terdaftar | 23 November 2021 |
| Terakhir Diperbaharui | 01 December 2025 |
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Feature
Provides a standard substantial assortment of safety limit switches globally. Contact Composition Associates 1Nc/1 NO, 2NC, 2NC/1 NO, 3NC. (Slow action is MBB specification)
Available in the number of departures and easy to exchange M12 connector types.
AU clad contact with high contact reliability is adopted as standard.
General load and micro burden are also supported.
EN115, EN 81-1, and EN81-2. (Slow action type only)
UL, EN (TUV) , CCC standard acquisition.
