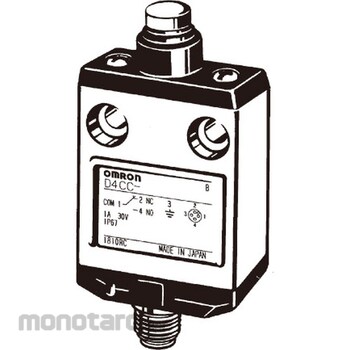

OMRON Compact Limit Switch D4CC D4CC-3031 1pc

#Nomor SKU S029510900

Spesifikasi Produk

Model Number	D4CC-3031
Unit	1pc
Type	Compact limit Switch
types	Without operation indicator
Type Of Actuator	Seal pin plunger Type
Rating	DC30V 1A for DC
Protection Class	IP67
Rated Frequency (Hz)	50/60
Insulation Resistance (MΩ)	100 or more (with DC500V mega)
Operating Ambient Temperature (°C)	-10 to 70 (no icing)
Electrical Rating	DC30V 1A
Impact Resistance Durability (m/s²)	1000 or more
Ambient Relative Humidity (RH)	35 to 95
Vibration Resistance (Malfunction)	10-55Hz Double vibration line 1.5mm
Shock Resistance Malfunction (m/s²)	500 or more
Mechanical Durability (times)	10 million or more
Allowable Operating Speed (mm-m/s)	0.1 to 0.5 (for plunger type) 1 to 1 (for roller lever type)
Electrical Durability	200,000 operations or more (125 VAC, 1 A resistive load)
Inrush Current (A)	(Always closed) Maximum 5, (Always open) Maximum 2.5
M Code	46523775
Berat (Kg)	0.5
Tanggal Produk Terdaftar	23 November 2021
Terakhir Diperbaharui	01 April 2026
