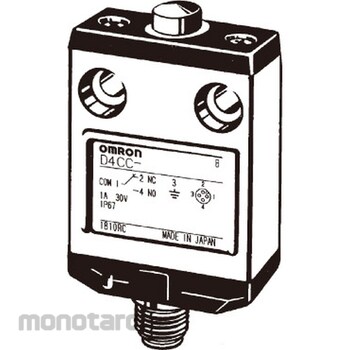

OMRON Compact Limit Switch D4CC D4CC-4001 1pc

#Nomor SKU S029510610

Spesifikasi Produk

Model Number	D4CC-4001
Unit	1pc
Type	Compact limit Switch
types	With operation indicator (standard Type)
Type Of Actuator	Pin plunger Type
Rating	DC30V 1A for DC
Protection Class	IP67
Resistance (ohm)	30k
Rated Frequency (Hz)	50/60
Insulation Resistance (MΩ)	100 or more (with DC500V mega)
Operating Ambient Temperature (°C)	-10 to 70 (no icing)
Electrical Rating	DC30V 1A (with operation indicator)
Impact Resistance Durability (m/s²)	1000 or more
Ambient Relative Humidity (RH)	35 to 95
Leakage Current (mA)	1
Vibration Resistance (Malfunction)	10-55Hz Double vibration line 1.5mm
Shock Resistance Malfunction (m/s²)	500 or more
Mechanical Durability (times)	10 million or more
Allowable Operating Speed (mm-m/s)	0.1 to 0.5 (for plunger type) 1 to 1 (for roller lever type)
Electrical Durability	200,000 operations or more (125 VAC, 1 A resistive load)
Inrush Current (A)	(Always closed) Maximum 5, (Always open) Maximum 2.5
M Code	46523836
Berat (Kg)	0.5
Tanggal Produk Terdaftar	23 November 2021
Terakhir Diperbaharui	01 April 2026
