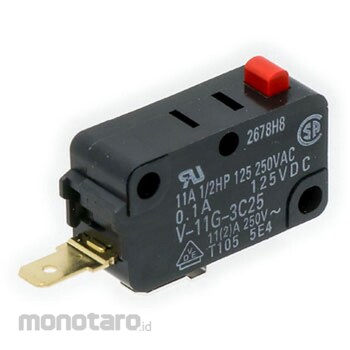

OMRON Miniature Basic Switch V V-11G-3C25 Pin Push Button Type 1pc
Rp51.900
Persediaan
Spesifikasi Produk
| Model Number | V-11G-3C25 |
|---|---|
| Unit | 1pc |
| Rated Current (A) | 11 |
| Contact Type | 1a (normally open Type) |
| Contact Material | Silver |
| Contact Specifications | rivet |
| Operating Force OF (N) | Up to 1.96 |
| Type of Terminal | # 187 Tab terminal |
| Rated Voltage (V) | AC 250 |
| Type Of Actuator | Pin push button Type |
| Protection Class | IEC IP40 |
| Contact Spacing (mm) | Standard value: 1 (F gap) |
| Operating Temperature Range (°С) | -25 to + 105 + 60% RH or less (however, no freezing or condensation) |
| Withstand Voltage | Between terminals of the same polarity: 1000 VAC 50/60 Hz for 1 min Between live metal parts and ground, between each terminal and non-live metal parts: 2000 VAC 50/60 Hz for 1 min *When using a separator |
| Operating Humidity Range (%RH) | 85 or less (at 5 to 35 ° C) |
| Insulation Resistance (MΩ) | 100 or more (with DC500V insulation resistance meter) |
| Heat Resistance Temperature (°С) | 105 |
| Contact Resistance (miliΩ) | 15 or less (initial value) |
| Vibration Resistance (Malfunction) | 10 to 55Hz, double amplitude 1.5mm (value at free position and operation limit position, contact closing or opening within 1ms) |
| Mechanical Durability (times) | 50 million operations or more (60 operations / min) |
| Minimum Applicable Load (V-mA) | DC 5-160 (reference value) |
| Allowable Operating Speed (mm-m/s) | 0.1 to 1 (Pin pushbutton type) |
| Electrical Durability | 300,000 operations or more (30 operations / min) |
| Electric Shock Protection Class | Class I |
| PTI (Proof Tracking Index) | 175 |
| Inrush Current (A) | Normally closed circuit: Up to 24, normally open circuit: Up to 24 |
| M Code | 46527293 |
| Berat (Kg) | 0.5 |
| Tanggal Produk Terdaftar | 23 November 2021 |
| Terakhir Diperbaharui | 07 March 2026 |
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Thermosetting case V-15/V-10 type Can be used for current interruption when opening and closing the door
Feature
Thermal Curchable Case Form V-15/Form V-10 TypeUse
Can be used for applications such as cutting off current when opening and closing doorsKetentuan dan Kondisi Barang
