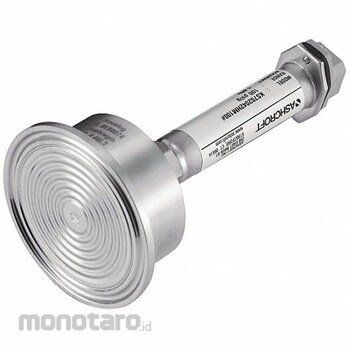

ASHCROFT Triclamp Pressure Transmitter KS7S2042HM30# 0 to 30 psi 1unit

Name: ASHCROFT Triclamp Pressure Transmitter KS7S2042HM30# 0 to 30 psi 1unit
Brand: ASHCROFT
SKU: S029474578
Price: 35999900 IDR
Availability: InStock

#Nomor SKU S029474578

Wishlist

0 Ulasan

Spesifikasi Produk

Model Number	KS7S2042HM30#
Unit	1unit
Transmitter Type	Pressure Transmitter
Wetted Materials	Transmitters: 316L Stainless Steel
Range Values	Transmitter: 0 to 30
Range Units	psi
Accuracy - Transmitter	+/-1.00%
Electrical Connections - Transmitter	4 Pin Hirschmann Style A DIN 43650-A Connector
Power Required	Transmitters: 9 to 36V DC
Process Connection Size (inch)	Transmitter: 2
Process Connection Type	Triclamp
Output (mA)	Transmitter: 4 to 20 DC
Operating Temperature (°F)	Transmitter: -20 to 180
Wiring Entry	Transmitters: 1/2 in FNPT
Housing	Stainless Steel
NEMA Rating	4X
Loop Resistance	Dependent on Loop Supply Voltage
Maximum Pressure (psi)	60
Thermal Error	+/-.04% per / Degrees F from -20 Degrees to 168 Degrees F
Compatible With	Any Process Compatible with 316 Stainless Steel
Includes	Instructions
Berat (Kg)	0.5
Tanggal Produk Terdaftar	22 November 2021
Terakhir Diperbaharui	27 May 2025

Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini

Informasi Produk

Description

For use in dairy, food, pharmaceutical, and most 3-A sanitary applications, this sanitary pressure vacuum transducer features 316L stainless steel construction, with an electropolished Tri-Clamp diaphragm. The polysilicon bridge and integral metal diaphragm are unaffected by shock, vibration, or mounting position. Use where a 4 to 20mA signal is required.
