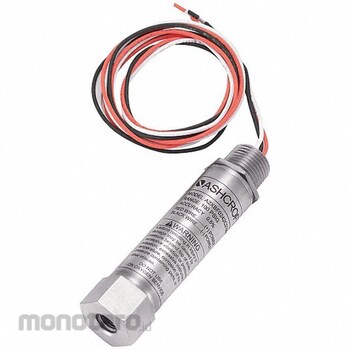

ASHCROFT 1/4inch FNPT Explosion Proof Pressure Transmitter A2XBF0242C25#G 0 to 5 psi 1unit

Name: ASHCROFT 1/4inch FNPT Explosion Proof Pressure Transmitter A2XBF0242C25#G 0 to 5 psi 1unit
Brand: ASHCROFT
SKU: S029463886
Price: 32999900 IDR
Availability: InStock

#Nomor SKU S029463886

Wishlist

0 Ulasan

Spesifikasi Produk

Model Number	A2XBF0242C25#G
Unit	1unit
Transmitter Type	Explosion Proof Pressure Transmitter
Wetted Materials	Transmitters: 316L Stainless Steel
Range Values	Transmitter: 0 to 5
Range Units	Transmitter: psi
Accuracy	Transmitter: +/-0.25%
Electrical Connections	Transmitter: 3 ft Cable
Power Required	Transmitter: 12 to 30V DC
Process Connection Size (inch)	Transmitter: 1/4
Process Connection Type	Transmitter: FNPT
Output (mA)	Transmitter: 4 to 20 DC
Operating Temperature (°F)	Transmitter: -40 to 257
Safety Rating	Transmitter: Class I, Div. 1 and 2, Groups A, B, C, D; Class I and II, Div 1 and 2, Groups E, F, G
Wiring Entry	Transmitter: 1/2 in FNPT
Housing	304 Stainless Steel
NEMA Rating	7 and 9
Loop Resistance	Dependent on Loop Supply Voltage
Maximum Pressure (psi)	10
Thermal Error	+/-2% (-4 Degrees to 185 Degrees F)
Compatible With	Any Process Compatible with 316 Stainless Steel
Berat (Kg)	0.3
Tanggal Produk Terdaftar	22 November 2021
Terakhir Diperbaharui	27 May 2025
