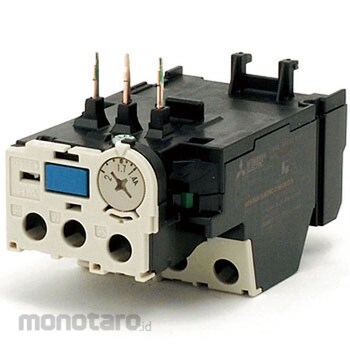

Mitsubishi Electric Thermal Relay Ms-T Series TH-T18 1.7A 1pc

Name: Mitsubishi Electric Thermal Relay Ms-T Series TH-T18 1.7A 1pc
Brand: Mitsubishi Electric
SKU: S029437443
Price: 299900 IDR
Availability: InStock

#Nomor SKU S029437443

Wishlist

0 Ulasan

Spesifikasi Produk

Model Number	TH-T18 1.7A
Unit	1pc
Rated operating current (A)	[AC-15 class (open/close of AC electromagnetic contactor coil) a contact/b contact]: (AC24V) 2/2, (AC120V) 2/2, (AC240V) 1/1, (AC550V) 0.3/0.3, [ DC-13 class (DC electromagnetic contactor coil opening and closing)]: (DC24V) 0.5, (DC110V) 0.2, (DC220V) 0.1
Type	Standard (with 2 elements)
Length (mm)	55
Thickness (mm)	76.5
flame	T18
Heat element rated setting range (A)	1.4 to 2
Auxiliary Contact	1a1b
Heater Nominal (A)	1.7
Width (mm)	45
Mass (kg)	0.11
Open thermal Current (A)	2
M Code	01074596
Berat (Kg)	1.0
Tanggal Produk Terdaftar	05 November 2021
Terakhir Diperbaharui	01 December 2025

Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini

Informasi Produk

Peringatan

PERHATIAN: Produk ini dirancang untuk tegangan 100/110/120V (Produk Impor). Penggunaan dengan tegangan yang berbeda dapat mengakibatkan kerusakan atau bahaya, karena tegangan listrik yang umum dipakai di Indonesia adalah 220V.

Warning

*The T18 frame can be used alone (screw mounting or IEC35mm rail mounting) by combining with the UT-HZ18.
The T25 frame for single installation can be mounted on the IEC35mm rail by combining with UN-RM20.

Feature

Easy current setting. Motor current can be set directly, and can be adjusted with any driver.
Manual check is possible. Can be manually tripped from the surface with a driver.
With operation display
Top free structure.

Use

General motor overload/restraint protection
