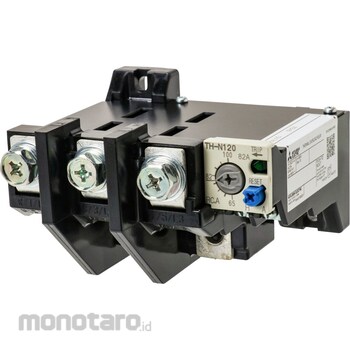

Mitsubishi Electric Thermal Relay Ms-N Series TH-N120 82A 1pc
Rp969.900
Persediaan
Spesifikasi Produk
| Model Number | TH-N120 82A |
|---|---|
| Unit | 1pc |
| Width (mm) | 103 |
| Rated operating current (A) | [AC-15 class (open/close of AC electromagnetic contactor coil) a contact/b contact]: (AC24V)2/3, (AC110V)2/3, (AC220V)1/2, (AC550V)0.5/1,[ DC-13 class (opening and closing of DC electromagnetic contactor coil)]: (DC24V)1, (DC110V)0.2, (DC220V)0.1 |
| Length (mm) | 67 |
| Terms Of Use | Ambient temperature: -10 to +40 degreesC (standard is 20 degreesC, maximum temperature in the panel is 55 degreesC), frequency: 0(DC) to 400Hz |
| Applicable to | MSO-N125, MSO-N150, single mountable |
| Heater Nominal (A) | 82 |
| Auxiliary Contact | 1a1b |
| Thickness (mm) | 105 |
| Model | TH-N20TA |
| Type | Standard (with 2 elements) |
| flame | N120 |
| Mass (kg) | 0.48 |
| Heat element rated setting range (A) | 65 to 100 |
| M Code | 35227561 |
| Berat (Kg) | 1.0 |
| Tanggal Produk Terdaftar | 05 November 2021 |
| Terakhir Diperbaharui | 07 February 2026 |
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Peringatan
PERHATIAN: Produk ini dirancang untuk tegangan 100/110/120V (Produk Impor). Penggunaan dengan tegangan yang berbeda dapat mengakibatkan kerusakan atau bahaya, karena tegangan listrik yang umum dipakai di Indonesia adalah 220V.Feature
[Applicable to motor protection] Applicable to standard motor overload and restraint protection.[Easy setting of current value] The current value of the motor can be set directly. +-Please adjust with any driver.
[Change of reset method] It is easy to change manual reset and automatic reset.
[With 1a1b contact] Different voltage of a and b contacts can be used.
