Mitsubishi Electric Mechanical Indicating Instrument Ac Voltmeter Square Instrument YS-210NAV B 0-300V DRCT 1pc
Rp769.900
Persediaan
Spesifikasi Produk
| Model Number | YS-210NAV B 0-300V DRCT |
|---|---|
| Unit | 1pc |
| Scale specifications | 0-300V |

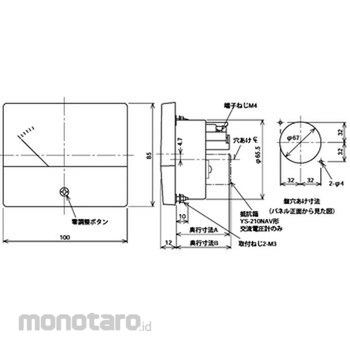

| Dimensions (mm) | 100x85 |
| Humidity (%RH) | Relative humidity 30 to 70 does not adversely affect the instructions |
| Cover | Black (Munsell N1.5 half gloss) |
| Scale Plate | (Ground color) white |
| Operating Principle | Movable iron piece |
| Dimension A (mm) | 43 |
| Dimension B (mm) | 45 |
| Cover Material | Acrylic resin (antistatic treated) |
| Scale (mm) | 85 |
| Test Voltage | Rated voltage 50 to 300V: 2210V for 5 seconds |
| Mounting posture | Vertical (meaning that the scale plate is vertical to the horizontal plane) |
| Standard | Direct acting indicator electric meter JIS C1102-2, JIS C1102-3, JIS C1102-4, JIS C1102-5, JIS C1102-7 |
| Class | 2.5 |
| Accessories | Mounting screw nut |
| Mass (kg) | 0.15 |
| format | YS-210NAV |
| Guideline | None |
| Operating Temperature Range (°C) | -5 to 50 (Standard 23) |
| Power Consumption (V/A) | 3 |
| M Code | 38736695 |
| Berat (Kg) | 0.6 |
| Tanggal Produk Terdaftar | 05 November 2021 |
| Terakhir Diperbaharui | 01 April 2026 |
