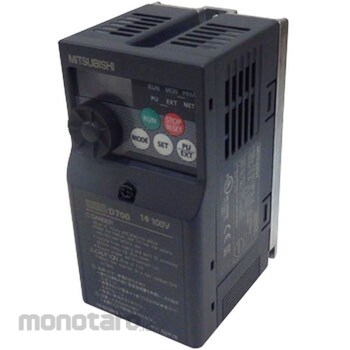

Mitsubishi Electric Inverter Freqrol-D700 Series (Single Phase 100V) FR-D710W-0.1K 1unit
Rp2.899.900
Persediaan
Spesifikasi Produk
| Model Number | FR-D710W-0.1K |
|---|---|
| Unit | 1unit |
| Storage Temperature Range (°C) | -20 to 65 |
| Frequency Accuracy | Within +/-1% of analog input/maximum output frequency (25 degrees Celsius+/-10 degrees Celsius) Within 0.01% of digital input/set output frequency |
| Control System | Soft-PWM control/high carrier frequency PWM control (V/F control, general-purpose magnetic flux vector control, optimal excitation control can be selected) |
| Ambient Temperature (°C) | -10 to 50 (No freezing) (-10 to 40 for fully closed construction) |
| Altitude (m) | Below sea level 1000 |
| AC voltage allowable fluctuation (V) | 90 to 132 |
| Type | Simple and compact inverter FR-D700 series single-phase 100V |
| Compatible Motor Capacity (kW) | 0.1 |
| Ambient Humidity (% RH) | 90 (no condensation) |
| Output voltage (V) | 3-phase 200 to 230 |
| Frequency (Hz) | 50/60 |
| DC braking | Operating frequency (0 to 120Hz), operating time (0 to 10s), operating voltage (0 to 30%) variable |
| Output rated capacity (kVA) | 0.3 |
| Allowable frequency fluctuation | +/-5% |
| Protective structure (JEM1030) | Closed type (IP20) |
| Output Frequency (Hz) | 0.2 to 400 |
| Atmosphere | Indoor (no corrosive gas, flammable gas, oil mist, dust) |
| Rated Current (A) | 0.8 |
| Alarm Function | Fan failure, overcurrent stall prevention, overvoltage stall prevention, PU stop, parameter writing error, regenerative brake pre-alarm, electronic thermal pre-alarm, maintenance output, undervoltage |
| Power Supply Voltage (V) | Single phase 100 to 115V (50Hz/60Hz) |
| M Code | 11100205 |
| Berat (Kg) | 0.7 |
| Tanggal Produk Terdaftar | 05 November 2021 |
| Terakhir Diperbaharui | 01 December 2025 |
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Peringatan
PERHATIAN: Produk ini dirancang untuk tegangan 100/110/120V (Produk Impor). Penggunaan dengan tegangan yang berbeda dapat mengakibatkan kerusakan atau bahaya, karena tegangan listrik yang umum dipakai di Indonesia adalah 220V.Feature
New standard for Mitsubishi inverterThe spring clamp terminal (control circuit) realizes high reliability and easy wiring. Equipped with a safety stop function and a hardware cut-off circuit for highly reliable emergency output cut-off.
Equipped with best-in-class performance in compact body
The compact body (3.7K or less) with the same mounting dimensions as our smallest inverter, the FR-S500 series, is equipped with general-purpose magnetic flux vector control, achieving a high torque of 150% (3.7K or less) at 1Hz.
Enhanced functions
Optimal for fan/pump application Excitation control/PID control, Machine tool application for deceleration/stop function during power failure, General purpose magnetic flux vector control for conveyor/food application/Brake resistor connection (0.4K to 15K), etc. It was equipped with.
