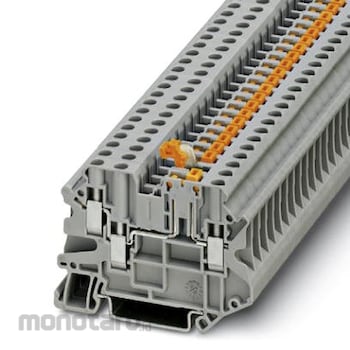

Phoenix Contact Knife Disconnect Terminal Block UT 4-TWIN-MT P/P 1pack(50pcs)
Rp5.499.900
Persediaan
Spesifikasi Produk
| Model Number | UT 4-TWIN-MT P/P |
|---|---|
| Unit | 1pack(50pcs) |
| Country of Origin | PL (Poland) |
| Color | Gray |
| Insulating Material | PA |
| Rated Surge Voltage (kV) | 6 |
| Degree of Pollution | 3 |
| Overvoltage Category | III |
| Insulating Material Group | I |
| Maximum Load Current (A) | 20 (with 6 mm² conductor cross section) |
| Nominal Current IN (A) | 20 (with 6mm² conductor cross section) |
| Nominal Voltage Un (V) | 500 |
| Open Side Panel | Yes |
| Width (mm) | 6.2 |
| End Cover Width (mm) | 2.2 |
| Length (mm) | 65.4 |
| Mounting Type | NS 35/7,5 |
| Potentials | 1 |
| Number of Rows | 1 |
| Number of Connections | 3 |
| Nominal Cross Section Area (mm²) | 4 |
| Part Number | 3064014 |
| Berat (Kg) | 99.9 |
| Tanggal Produk Terdaftar | 29 September 2021 |
| Terakhir Diperbaharui | 27 June 2025 |
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Feature
Knife disconnect terminal block, With test socket screws for insertion of test plugs, nom. voltage: 500 V, nominal current: 20 A, connection method: Screw connection, number of connections: 3, cross section: 0.14 mm² - 6 mm², AWG: 26 - 10, width: 6.2 mm, color: gray, mounting type: NS 35/7,5, NS 35/15Ketentuan dan Kondisi Barang
