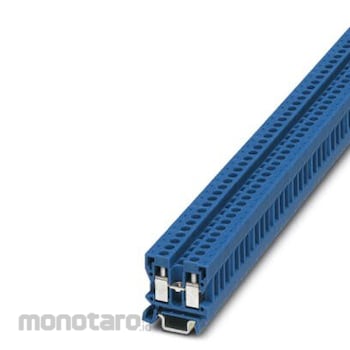

Phoenix Contact Terminal Block Feed-Through (Terminal Panel Listrik) MBK 5/E BU Mini 1pack(50pcs)

Name: Phoenix Contact Terminal Block Feed-Through (Terminal Panel Listrik) MBK 5/E BU Mini 1pack(50pcs)
Brand: Phoenix Contact
SKU: S028785682
Price: 1899900 IDR
Availability: InStock

#Nomor SKU S028785682

Wishlist

0 Ulasan

Spesifikasi Produk

Model Number	MBK 5/E BU
Unit	1pack(50pcs)
Country of Origin	PL (Poland)
Color	Blue
Insulating Material	PA
Rated Surge Voltage (kV)	6
Degree of Pollution	3
Overvoltage Category	III
Insulating Material Group	I
Maximum Load Current (A)	32 (with 4 mm² conductor cross section)
Nominal Current IN (A)	32
Nominal Voltage Un (V)	500
Open Side Panel	Yes
Back of the Hand Protection	Guaranteed
Finger Protection	Guaranteed
Bending Test Rotation Speed (rpm)	10
Bending Test Turns	135
Bending Test Conductor Cross Section per Weight (mm²/kg)	0.2/0.2; 4/0.9
Tensile Test Result	Test passed
Mounting Type	NS 15
Number of Rows	1
Part Number	1415115
Berat (Kg)	798.0
Tanggal Produk Terdaftar	29 September 2021
Terakhir Diperbaharui	02 February 2026

Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini

Informasi Produk

Feature

Mini feed-through terminal block, nom. voltage: 500 V, nominal current: 32 A, connection method: Screw connection, number of connections: 2, cross section: 0.2 mm² - 4 mm², AWG: 24 - 12, width: 6.2 mm, color: blue, mounting type: NS 15

Ketentuan dan Kondisi Barang

Pengembalian Barang 14 hari

Berubah pikiran tidak dapat diterima. Lihat selengkapnya

Ketersediaan Barang

Pilih jenis produk yang diinginkan

Nomor SKU	Model Number	Masa Persiapan Barang	Harga	Jumlah
Loading...

Ulasan Produk

Tidak ada ulasan
