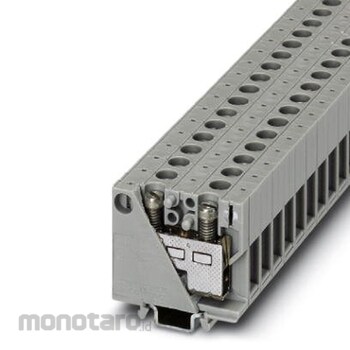

Phoenix Contact Terminal Block Feed-Through (Terminal Panel Listrik) MBK 10 Mini 1pc
Rp59.900
Persediaan
Spesifikasi Produk
| Model Number | MBK 10 |
|---|---|
| Unit | 1pc |
| Country of Origin | DE (Germany) |
| Color | Gray |
| Insulating Material | PA |
| Nominal Current IN (A) | 61 |
| Nominal Voltage Un (V) | 500 |
| Open Side Panel | No |
| Back of the Hand Protection | Guaranteed |
| Finger Protection | Guaranteed |
| Bending Test Rotation Speed (rpm) | 10 |
| Bending Test Turns | 135 |
| Bending Test Conductor Cross Section per Weight (mm²/kg) | 0.5/0.3; 6/1.4 |
| Tensile Test Result | Test passed |
| Short Circuit Stability Result | Test passed |
| Conductor Cross Section Short Circuit Testing (mm²) | 6 |
| Short-Time Current (kA) | 0.72 |
| Mounting Type | NS 15 |
| Tight Fit on Carrier | NS 15 |
| Setpoint (N) | 5 |
| Number of Rows | 1 |
| Part Number | 1402018 |
| Berat (Kg) | 14.2 |
| Tanggal Produk Terdaftar | 29 September 2021 |
| Terakhir Diperbaharui | 02 February 2026 |
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Feature
Mini feed-through terminal block, nom. voltage: 500 V, nominal current: 61 A, connection method: Screw connection, number of connections: 2, cross section: 0.5 mm² - 10 mm², AWG: 20 - 8, width: 7.5 mm, color: gray, mounting type: NS 15Ketentuan dan Kondisi Barang
