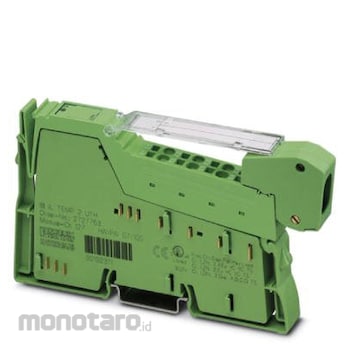

Phoenix Contact Inline Terminal IB IL TEMP 2 UTH-XC-PAC 1pc

Inline XC, Temperature measurement terminal, Analog UTH inputs: 2 (Thermocouples or linear voltage), connection method: 2-conductor, transmission speed in the local bus: 500 kbps, Extreme conditions version, degree of protection: IP20, including Inline connector and labeling field
Coated PCBs
Extended temperature range of -40 °C ... +70 °C (see “Tested successfully: use under extreme ambient conditions” in the data sheet)
Can be used under extreme ambient conditions
Measured values can be represented in three different formats
Absolute and differential temperature measurement (can be parameterized)
Internal detection and compensation of cold junction temperature (can be parameterized)
1 input for an external cold junction, Pt 1000 or Ni 1000
2 differential inputs for thermocouples or linear voltage
Pt 1000 sensor in the vicinity of the connection terminal blocks of the thermocouple inputs for internal measurement of the cold junction temperature
The channels are parameterized independently of one another via the bus system
