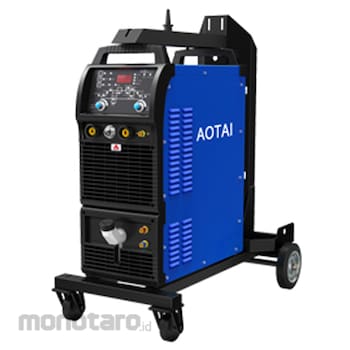

AOTAI TIG Welding Inverter DC ATIG-315PAC 1unit

Name: AOTAI TIG Welding Inverter DC ATIG-315PAC 1unit
Brand: AOTAI
SKU: S028026761
Price: 44999900 IDR
Availability: InStock

#Nomor SKU S028026761

AOTAI

Wishlist

0 Ulasan

Spesifikasi Produk

Model Number	ATIG-315PAC
Unit	1unit
Rated Input Voltage (V)	380 ± 10%
Frequency (Hz)	50/60
Phase	3
Rated Input Capacity (kVA)	13.5
Rated Input Current (A)	20.7
Duty Cycle (%)	'60%@315A at 40°C
OCV (V) (MMA/TIG)	Around 45/79
Output Current Range (A)	5-315
Arc Force (A)	10-200
Pre-Gas/Post-Gas (s)	0.1-15/0.1-60
Initial/Final Current (A)	10-160/5-315
Up-Slope/Down-Slope Time (s)	0.1-10/0.1-15
Peak Current (A)	5-315
Pulse Frequency (Hz)	0.2-20
Dimensions (mm)	655x324x546
Berat (Kg)	50.0
Tanggal Produk Terdaftar	18 May 2021
Terakhir Diperbaharui	27 May 2025

Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini

Informasi Produk

Feature

Usable with both ferrous and nonferrous metals welding, specially good at aluminum alloy and stainless steel.
Abundant parameters adjustable.
The clean ratio and AC frequency specially for aluminum welding.
