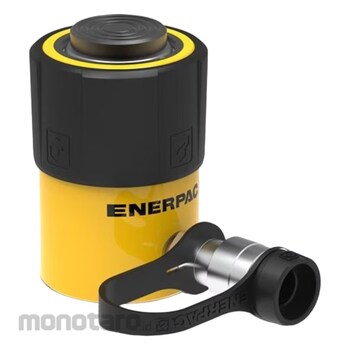

Enerpac Hydraulic Cylinder 25 Ton (Single Acting) RC251 1pc

Name: Enerpac Hydraulic Cylinder 25 Ton (Single Acting) RC251 1pc
Brand: Enerpac
SKU: S028019985
Price: 17999900 IDR
Availability: InStock

#Nomor SKU S028019985

Wishlist

0 Ulasan

Spesifikasi Produk

Model Number	RC251
Unit	1pc
Maximum Operating Pressure (bar)	700
Capacity Class (tonnage)	25
Maximum Cylinder Capacity Advance (kN)	232
Stroke (mm)	26
Collapsed Height A (mm)	140
Extended Height B (mm)	166
Return Type	Single-Acting, Spring Return
Plunger Type	Solid
Material	Steel
Cylinder Effective Area Advance (cm²)	33.3
Oil Capacity Advance (cm³)	86
Surface Treatment	Paint
Outside Diameter D (mm)	86
Base Mounting Holes Thread Depth Z (mm)	19
Cylinder Bore Diameter E (mm)	65.1
Plunger Diameter F (mm)	57.2
Base to Advance Port H (mm)	25
Plunger Thread Length P (mm)	25
Collar Thread W (inch)	3 5/16-12UN
Collar Thread Length X (mm)	49
Berat (Kg)	5.7
Tanggal Produk Terdaftar	07 May 2021
Terakhir Diperbaharui	29 January 2026

Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini

Informasi Produk

Description

Product Lines : Industrial Tools
- Unique GR2 Bearing Design, reduces wear, extending life
- Base mounting holes enable easy fixturing
- Designed for use in all positions
- High strength alloy steel for durability
- Redesigned cylinder thread protector for ease of use
- Heavy-duty, pretensioned spring improves retraction speed
- Baked enamel finish for increased corrosion resistance
- CR-400 coupler and dust cap included on all models
- Plunger wiper reduces contamination, extending
