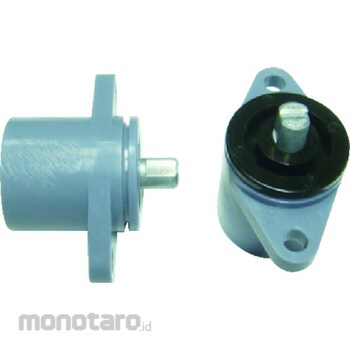

TOK Rotary Damper TD38 TD38B13K 1pc
Rp299.900
Persediaan
Spesifikasi Produk
| Model Number | TD38B13K |
|---|---|
| Unit | 1pc |
| Finishing Material | Housing, cap: Polyacetal resin(POM), Shaft: Zinc die casting |
| Durability | Open and close 100 thousand times (free fall) |
| Hole Diameter (mm) | 4.2 |
| Outer Dimensions (mm) | 22 |
| Rated Torque (N m) | 0.29 |
| Standard | Should be operated with the Rated Torque or equivalent Weight at 150degrees for 2 to 10 seconds |
| Threaded Hole Number | 2 |
| Total Length (mm) | 32 |
| Working Temperature Range (°C) | 0 to 40 |
| Berat (Kg) | 0.7 |
| Tanggal Produk Terdaftar | 30 March 2021 |
| Terakhir Diperbaharui | 27 May 2025 |
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Feature
- Product weight has been reduced by the use of plastic.- One-way damper.
- When starting to close from the open state, large resistance is not caused.
- Also, when opening from the closed state, large resistance is not caused.
Use
For soft closing of a cover of an equipment or a flapper.Ketentuan dan Kondisi Barang
