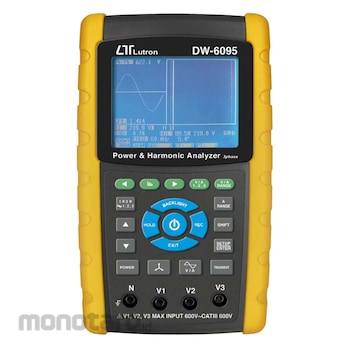

Lutron Phase Power Analyzer DW-6095 1unit

Name: Lutron Phase Power Analyzer DW-6095 1unit
Brand: Lutron
SKU: S024638241
Price: 43999900 IDR
Availability: OutOfStock

#Nomor SKU S024638241

Wishlist

0 Ulasan

Spesifikasi Produk

Model Number	DW-6095
Unit	1unit
Wire Connections	1P/2W, 1P/3W, 3P/3W, 3P/4W
Voltage Range (V)	AC 10 to 600
Safety Standard	IEC1010 CAT III 600 V.
ACV input impedance (MΩ)	10
Frequency (Hz)	45 to 65
Dimensions (mm)	225x125x64
Standard Accessory	Instruction Manual, Test Leads TL88-4AT, Alligator clips TL88-4AC, Clamp Probe CP-1201, AC to DC 9V adapter, SD card 2GB, Carrying Bag
Optional Accessories	2000 Amp current probe CP-2000, 200 Amp current probe CP-200, Flexible 3000 Amp current probe CP-3000, USB Cable USB-01, RS232 cable UPCB-02, Data Acquisition software SW-U811
Berat (Kg)	1.1
Tanggal Produk Terdaftar	13 December 2020
Terakhir Diperbaharui	27 May 2025

Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini

Informasi Produk

Feature

- Analysis for 3 phase multi-power system, 1P/2W, 1P/3W, 3P/3W, 3P/4W
- 3 current probes ( CP-1201 ) are included, if change the current probes, the calibration procedures are not necessary
- Current probe input signal/ranges with selection : Input signal (ACV) : 200 mV/300 mV/500 mV/1 V/2 V/3 V. Ranges (ACA) : 20 A/200 A/2000 A/30 A/300 A/ 3000 A.
- Meter can cooperate the universal current probes
- Complete set with 4 PCs Test Leads, 4 PCs Alligator clips 3 PCs Clamp Probe ( CP 1201 ), AC to DC 9V adapter, 2 G SD memory card and Carrying bag
- Harmonics display (1-50th order)
- Simultaneous display of Harmonics and Wave form.
- Display of Waveform with Peak Values.
- Analysis of Total Harmonic Distortion ( THD ).
- 3 phase Voltage or Current Unbalanced Ratio (VUR, AUR) and Unbalanced Factor
- Calculated Unbalanced Current through Neutral Line ( An )
- Capture Transient events (including Dip, Swell and Outage ) with programmable threshold ( % ).
- Programmable CT ratio ( 1 to 600 ) and PT ratio ( 1 to 1000)
- ACV input impedance is 10 Mega ohms
- Safety Standard : IEC 1010, CAT III 600V
