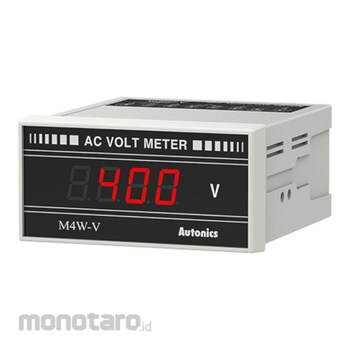

Autonics Digital Panel Meters Voltmeter Series M4W-AVR-6 1pc

Name: Autonics Digital Panel Meters Voltmeter Series M4W-AVR-6 1pc
Brand: Autonics
SKU: S023644496
Price: 889900 IDR
Availability: OutOfStock

#Nomor SKU S023644496

Wishlist

0 Ulasan

Spesifikasi Produk

Model Number	M4W-AVR-6
Unit	1pc
Display Method	3½-digit 7-segment LED
Character Height (mm)	14
Measurement	AC voltage
Input Specification	400V
Max. Display Range	0 to 400
AC Measurement	Root mean square value(RMS)
Power Supply Optional (V-Hz)	AC 110/220-50/60 (100-240VAC~ 50/60Hz)
Output	Indicator
Max. Allowable Input	150% for each input specification (at 400VAC:120%)
Display Accuracy	AC Power : F.S. ±0.5% rdg ±1-digit
Sampling Cycle (ms)	300
Ambient Temperature (°C)	-10 to 50, storage: -25 to 65
Ambient Humidity (% RH)	35 to 85, storage: 35 to 85
Berat (Kg)	0.1
Tanggal Produk Terdaftar	13 December 2020
Terakhir Diperbaharui	27 May 2025

Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini

Informasi Produk

Description

The M4Y/M4W/M5W/M4M series digital voltmeters can measure and display AC or DC voltage in numeric form. All models feature a 7-segment LED display for clear indication of measured values. The meters can display RMS or AVG values based on user preference (AC voltage). User-friendly functions including auto-zero adjustment and hold display value functions are included (except M5W). The meters are available in various standard DIN size cases for convenient installation.

Warning

Available input can be direct connection if under 300VDC, 400VAC.
Power supply: It is optional.(customizable)
Environment resistance is rated at no freezing or condensation.
The weight includes packaging. The weight in parenthesis is for unit only.Image on this page only as Representative Image, Please check the specifications of each size and color for details
