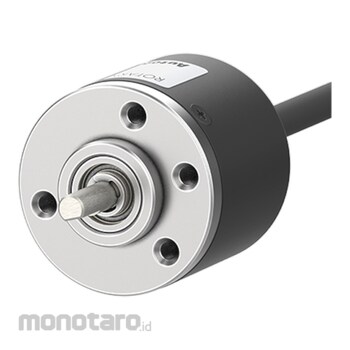

Autonics Rotary Encoders Incremental Type E30S Series E30S4-100-3-T-5 1pc

Name: Autonics Rotary Encoders Incremental Type E30S Series E30S4-100-3-T-5 1pc
Brand: Autonics
SKU: S023638303
Price: 1299900 IDR
Availability: OutOfStock

#Nomor SKU S023638303

Wishlist

0 Ulasan

Spesifikasi Produk

Model Number	E30S4-100-3-T-5
Unit	1pc
Shaft Outer Diameter	Ø4
Maximum Response Frequency (kHz)	300
Maximum Allowable Revolution (rpm)	5000
Starting Torque (kgf.cm)	Max. 20 (max. 0.00196N.m)
Resolution	100P/R
Output Phase	A, B, Z
Control Output	Totem pole
Power Supply (V)	5VDC ±5%(ripple P-P: max. 5%)
Connection Type	Axial cable type
Protection Structure	IP50
Ambient Temperature (°C)	-10 to 70, storage: -25 to 85
Ambient Humidity (% RH)	35 to 85, storage: 35 to 90
Accessories	Ø4mm coupling
Berat (Kg)	0.1
Tanggal Produk Terdaftar	13 December 2020
Terakhir Diperbaharui	27 May 2025

Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini

Informasi Produk

Description

The E30S series incremental rotary encoders feature compact Ø30 mm size housings for easy installation in tight or limited spaces. The low moment of inertia of the shaft minimizes the effect on the rotation of applied equipment. The encoders are available in various control output options.

Warning

Make sure that max. response revolution should be lower than or equal to max. allowable revolution when selecting the resolution.
[Max. response revolution (rpm) = Max. response frequency/Resolution × 60sec]
The weight includes packaging. The weight in parenthesis is for unit only.
Environment resistance is rated at no freezing or condensation.Image on this page only as Representative Image, Please check the specifications of each size and color for details
