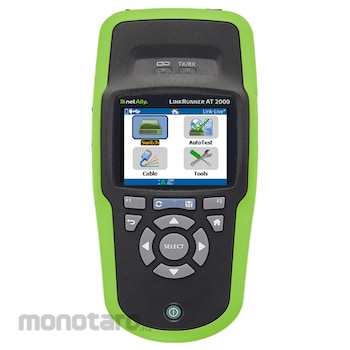

netAlly LinkRunner ATNetwork AutoTester LRAT-2000 1pc

Name: netAlly LinkRunner ATNetwork AutoTester LRAT-2000 1pc
Brand: netAlly
SKU: S020705541
Price: 77999900 IDR
Availability: InStock

#Nomor SKU S020705541

netAlly

Wishlist

0 Ulasan

Spesifikasi Produk

Model Number	LRAT-2000
Unit	1pc
Dimensions (cm)	8.9x19.8x4.8
Dimensions (inch)	3.5x7.8x1.9
Battery	Removable, rechargeable lithium-ion battery pack (18.5 Watt-hrs)
Battery Life	Typical operating life is 6 hours; Typical charge time is 3 hours
Display LCD (inch)	2.8 color (320x240pixels)
Keypad	12-key elastomeric
Tone Generator	IntelliTone digital tone: [500KHz]; analog tones: [400Hz, 1KHz]
External AC Adapter/Charger	AC input 90 to 264V AC 48 to 62Hz input power DC output 15V DC at 1.2 Amps
Interface	USB
Hard Disk (MB)	1 available space
RAM (Gb)	1 or more
Processor	1GHz or better CPU
Supporting Operating Systems : Windows® 8.1 and Windows® 10	Windows 8.1 and 10
Loaded Power (W)	LRAT-2000 with TruePower
Unloaded Power (W)	LRAT-1000
Loaded Voltage (V)	LRAT-2000 with TruePower
Power Over Ethernet (PoE)	Single ended testing
Cable Tests	Pair lengths, opens, shorts, splits, crossed, straight through, and cable ID
Operating Temperature and Relative Humidity (°F)	32 to 113
Operating Temperature and Relative Humidity (°C)	0 to +45
Berat (Kg)	0.5
Tanggal Produk Terdaftar	25 October 2020
Terakhir Diperbaharui	27 May 2025

Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini

Informasi Produk

Feature

- Media Access; Copper RJ-45: 10BASE-T, 100BASE-TX, 1000BASE-T and PoE (IEEE 802.3af and 802.3at).
- Media Access; Fiber, SFP Adapter Port supports 100BASE-FX and 1000BASE-LX/ SX/ZX (LRAT-2000 Only).
- User-defined testing to IEEE 802.3at class 0, 1, 2, 3, 4 without LLDP negation, or 4 with LLDP negotiation.
- The following PSE PoE parameters are measured: Pairs used, Received class, PSE type : Unloaded voltage(V).
- Display: 1024x768 high color, 32-bit (recommended).
Enivronmental
- Operating Relative Humidity (% RH without condensation) : 90% (50 to 95°F; 10 to 35°C) 75% (95 to 113°F; 35 to 45°C).
- Storage Temperature : -4 to 140°F (-20 to +60°C).
- Shock and Vibration : Random, 2g, 5Hz-500Hz (Class 2) 1m drop.
- Safety : EN 61010-1 2nd edition.
- Safety (LR-AT 2000 only) EN/IEC 60825-1:2007, EN/IEC 60825-2:2004+ A1:2007 (LRAT- 2000 only).
- Altitude : 4000m; Storage: 12000m.
- EMC : FCC Part 15 Class A, EN 61326-1.
- Certifications and Compliance : Conforms to relevant European Union directives Conforms to relevant Australian standards Listed by the Canadian Standards Association.
- LinkRunner AT Manager Software.
- Display : 1024x768 high color, 32-bit (recommended).
