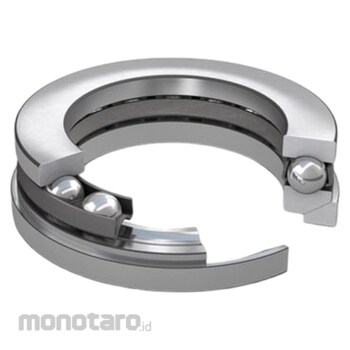

SKF Thrust Ball Bearings 53318 Single Direction with Sphered Housing Washer 1pc
Rp5.499.900
Persediaan
Spesifikasi Produk
| Model Number | 53318 |
|---|---|
| Unit | 1pc |
| Bore Diameter d (mm) | 90 |
| Outside Diameter D (mm) | 155 |
| Height H (mm) | 54.6 |
| Radius of Aligning Surface (mm) | 112 |
| Basic Dynamic Load Rating C (kN) | 182 |
| Basic Static Load Rating C0 (kN) | 440 |
| Reference Speed (rpm) | 1400 |
| Limiting Speed (rpm) | 2000 |
| Axial Load Capability | Single-direction |
| Number of Rows | 1 |
| Cage | Sheet metal |
| Housing Washer Type | Sphered |
| Tolerance Class | Normal |
| Bearing Material | Bearing steel |
| Coating | Without |
| Height Bearing Including Seat Washer H1 (mm) | 59 |
| Outside Diameter Shaft Washer d1 (mm) | ≈ 155 |
| Inner Diameter Housing Washer D1 (mm) | ≈ 93 |
| Inner Diameter Sphered Seat Washer D2 (mm) | 120 |
| Outside Diameter Sphered Housing Washer D3 (mm) | 160 |
| Height Sphered Housing Washer C (mm) | 18 |
| Radius Sphered Housing Washer R (mm) | 112 |
| Centre Height Housing Washer Sphere s (mm) | 40 |
| Chamfer Dimension Washer r1,2 (mm) | min. 1.5 |
| Abutment Diameter Shaft da Min (mm) | min. 129 |
| Abutment Diameter Housing Da Max (mm) | max. 120 |
| Fillet Radius ra (mm) | max. 1 |
| Fatigue Load Limit Pu (kN) | 14.6 |
| Minimum Load Factor (A) | 1.3 |
| Seat Washer | U 318 |
| Berat (Kg) | 1.2 |
| Tanggal Produk Terdaftar | 26 August 2020 |
| Terakhir Diperbaharui | 21 July 2025 |
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Single direction thrust ball bearings, with sphered housing washer, can accommodate axial loads in one direction. They must not be subjected to any radial load. Many of the components are interchangeable. The shaft washers have a ground bore that enables an interference fit. The sphered housing washers can accommodate initial misalignment when configured correctly with a sphered seat washer or a machine component with a sphered surface.
Warning
Image may differ from product. See technical specification for details.Dokumentasi Produk
