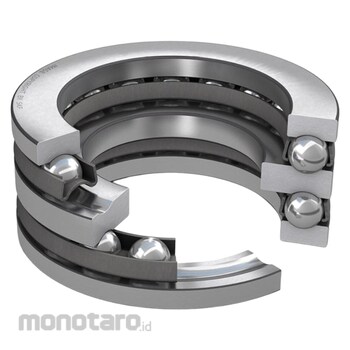

SKF Thrust Ball Bearings 52202 Double Direction 1pc

Name: SKF Thrust Ball Bearings 52202 Double Direction 1pc
Brand: SKF
SKU: S017215848
Price: 479900 IDR
Availability: InStock
Rating: 100 (3 reviews)

#Nomor SKU S017215848

Wishlist

Rating:

100% of 100

(3)

3 Ulasan

Spesifikasi Produk

Model Number	52202
Unit	1pc
Bore Diameter d (mm)	10
Outside Diameter D (mm)	32
Height H (mm)	22
Basic Dynamic Load Rating C (kN)	15.9
Basic Static Load Rating C0 (kN)	25
Reference Speed (rpm)	5300
Limiting Speed (rpm)	7500
Axial Load Capability	Double-direction
Number of Rows	2
Cage	Sheet metal
Housing Washer Type	Flat
Tolerance Class	Normal
Bearing Material	Bearing steel
Coating	Without
Inner Diameter Housing Washer D1 (mm)	≈ 17
Height Shaft Washer B (mm)	5
Chamfer Dimension Housing Washer r1,2 (mm)	min. 0.6
Chamfer Dimension Shaft Washer r3,4 (mm)	min. 0.3
Abutment Diameter Shaft da (mm)	15
Abutment Diameter Housing Da Max (mm)	max. 22
Fillet Radius Housing ra (mm)	max. 0.6
Fillet Radius Shaft rb (mm)	max. 0.3
Fatigue Load Limit Pu (kN)	0.915
Minimum Load Factor (A)	0.0038
Berat (Kg)	1.2
Tanggal Produk Terdaftar	26 August 2020
Terakhir Diperbaharui	21 July 2025

Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini

Informasi Produk

Description

Double direction thrust ball bearings can accommodate axial loads in both directions, but they must not be subjected to any radial load. Their separable components facilitate mounting/dismounting and maintenance inspections, and many of the components are interchangeable. The shaft washers have a ground bore that enables an interference fit.

Warning

Image may differ from product. See technical specification for details.
