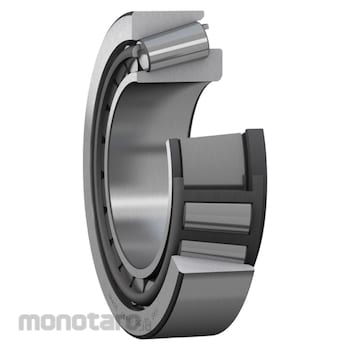

SKF Single Row Tapered Roller Bearings 32010 X 1pc
Rp249.900
Persediaan
Spesifikasi Produk
| Model Number | 32010 X |
|---|---|
| Unit | 1pc |
| Bore Diameter d (mm) | 50 |
| Outside Diameter D (mm) | 80 |
| Total Width T (mm) | 20 |
| Width of Inner Ring B (mm) | 20 |
| Width of Outer Ring C (mm) | 15.5 |
| Contact Angle (°) | 15.75 |
| Basic Dynamic Load Rating C (kN) | 75.1 |
| Basic Static Load Rating C0 (kN) | 88 |
| Reference Speed (rpm) | 6300 |
| Limiting Speed (rpm) | 8000 |
| SKF Performance Class | SKF Explorer |
| Bearing Part | Complete bearing |
| Number of Rows | 1 |
| Locating Feature, Bearing Outer Ring | None |
| Bore Type | Cylindrical |
| Cage | Sheet metal |
| Arrangement of Contact Angle (double-row bearing) | Not applicable |
| Matched Arrangement | No |
| Coating | Without |
| Sealing | Without |
| Lubricant | None |
| Relubrication Feature | Without |
| Shoulder Diameter of Inner Ring d1 (mm) | ≈ 65.95 |
| Chamfer Dimension of Inner Ring r1,2 (mm) | min. 1 |
| Chamfer Dimension of Outer Ring r3,4 (mm) | min. 1 |
| Distance Side Face to Pressure Point a (mm) | 17.554 |
| Diameter of Shaft Abutment da Max (mm) | max. 57 |
| Diameter of Shaft Abutment db (mm) | min. 57.5 |
| Diameter of Housing Abutment Da Min (mm) | min. 72 |
| Diameter of Housing Abutment Da Max (mm) | max. 73.5 |
| Diameter of Housing Abutment Db Min (mm) | min. 77 |
| Minimum Width Of Space Required in Housing on Large Side Face (mm) | min. 4 |
| Minimum Width Of Space Required In Housing On Small Side Face Cb (mm) | min. 4.5 |
| Radius of Shaft Fillet ra (mm) | max. 1 |
| Radius of Housing Fillet rb (mm) | max. 1 |
| Fatigue Load Limit Pu (kN) | 9.65 |
| Limiting Value (e) | 0.43 |
| Berat (Kg) | 1.2 |
| Tanggal Produk Terdaftar | 26 August 2020 |
| Terakhir Diperbaharui | 21 July 2025 |
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Single row tapered roller bearings are designed to accommodate combined radial and axial loads and provide low friction during operation. The inner ring, with rollers and cage, can be mounted separately from the outer ring. These separable and interchangeable components facilitate mounting, dismounting and maintenance. By mounting one single row tapered roller bearing against another and applying a preload, a rigid bearing application can be achieved.
Warning
Image may differ from product. See technical specification for details.Feature
- High radial and axial load carrying capacity- Accommodate axial loads in one direction
- Low friction and long service life
- Separable and interchangeable components
