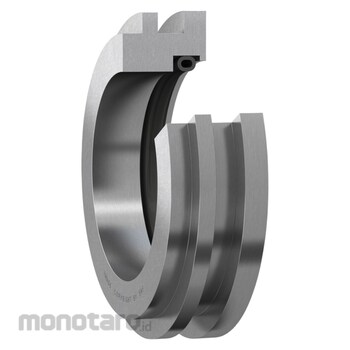

SKF Seal Labyrinth TSN 519 S 1pc
Rp2.799.900
Persediaan
Spesifikasi Produk
| Model Number | TSN 519 S |
|---|---|
| Unit | 1pc |
| Outside Diameter D (mm) | 138.5 |
| Shaft Diameter da (mm) | 85 |
| Housing Groove Diameter (mm) | 141 |
| Width B (mm) | 24 |
| Accessory Type | Housing seal |
| Sealing Type | Labyrinth |
| Material | Steel with silicone element |
| Diameter of Seal Groove Dc (mm) | 141 |
| Distance to Side Face c (mm) | 14 |
| Berat (Kg) | 1.2 |
| Tanggal Produk Terdaftar | 26 August 2020 |
| Terakhir Diperbaharui | 02 March 2026 |
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
SNL housing seals are the first barrier against contamination. For applications where there are high speeds or extreme temperatures, SKF recommends using labyrinth seals, and for highly contaminated environments, SKF recommends the three-barrier solution. This cost-effective sealing solution can have a significant impact on bearing service life as contaminants have to pass through three barriers to reach the bearing.
Warning
Image may differ from product. See technical specification for details.Feature
- Good protection from contamination- Keep the lubricant in the housing
- Part of the three barrier solution
- Cost-effective
Dokumentasi Produk
