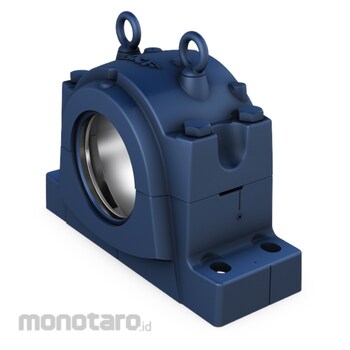

SKF Pillow Block Housing SNL 3138 1pc
Rp30.999.900
Persediaan
Spesifikasi Produk
| Model Number | SNL 3138 |
|---|---|
| Unit | 1pc |
| Diameter of Bearing Seat Da (mm) | 320 |
| Width of Bearing Seat Ca (mm) | 124 |
| Centre Height (pillow block) (mm) | 190 |
| Centre Distance Between Bolt Holes (mm) | 480 |
| Centre Distance between Bolt Holes (axial direction) (mm) | 120 |
| Attachment Bolt Diameter (mm) | 24 |
| Housing Type | Plummer/pillow block |
| Housing Configuration | Two-piece |
| Mounting Arrangement | Through shaft/Shaft end |
| Number of Bolt Holes for Fasteners | 4 |
| Material, Housing | Cast iron |
| Bearing Housing Seal Type | Without |
| Housing Lubrication Feature/Possibility | Grease |
| Berat (Kg) | 1.2 |
| Tanggal Produk Terdaftar | 26 August 2020 |
| Terakhir Diperbaharui | 21 July 2025 |
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
SNL plummer (pillow) block housings in the 30, 31 and 32 series are robust and suitable for tough operating conditions. They enable the incorporated bearings to achieve maximum service life with less need for maintenance. Different housing variants and seal designs are available, making the use of tailored housings virtually unnecessary and enabling cost-effective bearing arrangements to be made
Warning
Image may differ from product. See technical specification for details.Feature
- Easy to install- Cost-effective bearing arrangement
- Reduce maintenance
- Minimize lubricant leakage
