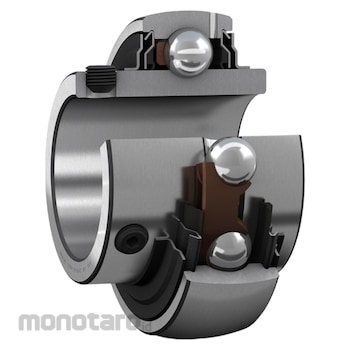

SKF Insert Bearing with Set Screw Locking and Extended Inner Ring YAR 207-2F 1pc
Rp219.900
Persediaan
Spesifikasi Produk
| Model Number | YAR 207-2F |
|---|---|
| Unit | 1pc |
| Bore Diameter d (mm) | 35 |
| Outside Diameter D (mm) | 72 |
| Width, Total (mm) | 42.9 |
| Width of Inner Ring B (mm) | 42.9 |
| Width of Outer Ring C (mm) | 19 |
| Basic Dynamic Load Rating C (kN) | 25.5 |
| Basic Static Load Rating C0 (kN) | 15.3 |
| Limiting Speed (rpm) | 5300 |
| Retaining Feature, Inner Ring | Set screws |
| Bore Type | Cylindrical |
| Rolling Elements | Balls |
| Outer Ring Type | Spherical |
| Inner Ring Extension | On both sides |
| Cage | Non-metallic |
| Bearing Material | Bearing steel |
| Coating | Without |
| Sealing | Seal and flinger on both sides |
| Sealing Type | Contact, standard |
| Lubricant | Grease |
| Relubrication Feature | With |
| Outside Diameter of Inner Ring d1 (mm) | ≈ 46.1 |
| Distance Face to Thread Centre B4 mm | 6 |
| Chamfer Dimension of Inner Ring r1,2 (mm) | min. 1 |
| Distance From Locking Device Side Face to Raceway Centre s1 (mm) | 25.4 |
| Fatigue Load Limit Pu (kN) | 0.655 |
| Catatan | Limiting speed with shaft tolerance h6 |
| Set Screw | M6x0.75 |
| Hexagonal Key Size for Set Screw (mm) | 3 |
| Recommended Tightening Torque for Set Screw (N m) | 4 |
| Compatibility Rubber Seating Ring | RIS 207 A |
| Berat (Kg) | 1.2 |
| Tanggal Produk Terdaftar | 26 August 2020 |
| Terakhir Diperbaharui | 21 July 2025 |
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Insert bearings are based on sealed deep groove ball bearings. This variant is suitable for applications with both constant and alternating directions of rotation. It has an inner ring extended on both sides and is locked onto the shaft by tightening two (set) screws on the inner ring, making it easy to mount.
Warning
Image may differ from product. See the technical specification for details.Feature
- Designed for a constant and alternating rotation- Quick and easy to mount onto the shaft
- Reduce noise and vibration levels
Dokumentasi Produk
