Hydraulic pump 50 MPa
50 MPa - (7 250 psi)

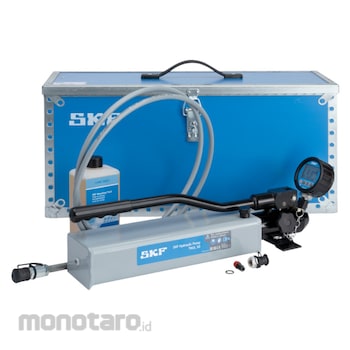

The TMJL 50 pump is mainly intended for use on the low pressure side of SKF OK couplings, but is also suitable for applications where a maximum pressure of 50 MPa (7 250 psi) is required. The pump is supplied with a 3 000 mm (118 in) long high pressure hose with quick connect coupling and mating nipple. It is filled with SKF Mounting fluid LHMF 300 and is supplied with an extra litre of fluid.
Special execution TMJL 50DU
TMJL 50 including THGD 100 digital pressure gauge for use with the SKF Drive-up Method.
Features & benefits
- Large oil container (cap. 2 700 cm³, 165 in.³)
- Over pressure valve and connection port for a pressure gauge
- Packed in a sturdy protective case
Applications
- SKF OK coupling hydraulic chambers
- All sizes SKF hydraulic nuts
- Oil injection applications where the maximum pressure is 50 MPa (7 250 psi)
SKF Hydraulic Pump TMJL 50DU 1pc
Rp62.999.900
Persediaan
Spesifikasi Produk
| Model Number | TMJL 50DU |
|---|---|
| Unit | 1pc |
| Dimensions (WxLxH) (mm) | 120x635x185 |
| Case Dimensions (LxHxW) (mm) | 715x280x355 |
| Maximum Pressure (bar) | 500 |
| Maximum Pressure (MPa) | 50 |
| Type | Hand operated pump |
| Recommended Applications | SKF Drive-up method using SKF hydraulic nuts smaller than or equal to HMV 200EOil injection applications where the maximum pressure is 500 MPa (7 250 psi) |
| Type of Pump | Single stage |
| Volume per Stroke (mL) | 3.5 |
| Oil Container Capacity (ml) | 2700 |
| Pressure Gauge | Yes, digital |
| Hose Length (mm) | 3000 |
| Filled with Oil | Yes, with SKF Mounting Fluid LHMF 300 |
| Handle Force at Maximum Oil Pressure (N) | 310 |
| Connection Nipple | G 1/4 (male) |
| Suitable for Drive Up Method | Yes |
| Suitable for Hydraulic Nut HMV Range | 9-200 |
| Housing Material | Steel pump body |
| Colour | GreyBlack |
| Operating Temperature Range (°C) | 10-35 |
| Relative Humidity (%RH) | 0 to 75, non-condensing |
| Kandungan | Pump with mounting fluid pressure hose quick connection couplingquick connection nippledigital pressure gaugetool case1l can of mounting fluid |
| Volume per Stroke (cm³) | 3.5 |
| Berat (Kg) | 1.0 |
| Tanggal Produk Terdaftar | 26 August 2020 |
| Terakhir Diperbaharui | 27 May 2025 |
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Warning
Image may differ from product. See technical specification for details.Feature
- Large oil container capacity 2700 cm³ (165 in³)- Over pressure valve and supplied with a digital pressure gauge
- Packed in a sturdy protective case
- Supplied with an extra litre of fluid
