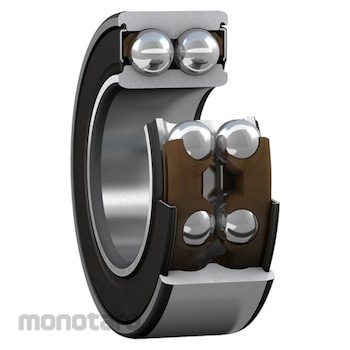

SKF A-2RS1TN9/C3MT33 Type Double Row Angular Contact Ball Bearings 3208 A-2RS1TN9/C3MT33 1pc

Name: SKF A-2RS1TN9/C3MT33 Type Double Row Angular Contact Ball Bearings 3208 A-2RS1TN9/C3MT33 1pc
Brand: SKF
SKU: S017165679
Price: 1199900 IDR
Availability: InStock

#Nomor SKU S017165679

Wishlist

0 Ulasan

Spesifikasi Produk

Model Number	3208 A-2RS1TN9/C3MT33
Unit	1pc
Bore Diameter d (mm)	40
Outside Diameter D (mm)	80
Width B (mm)	30.2
Contact Angle (°)	30
Basic Dynamic Load Rating C (kN)	48
Basic Static Load Rating C0 (kN)	36.5
Limiting Speed (rpm)	5600
SKF Performance Class	SKF Explorer
Contact Type	Normal contact (two-point contact)
Number of Rows	2
Locating Feature, Bearing Outer Ring	None
Ring Type	One-piece inner and outer rings
Cage	Non-metallic
Arrangement of Contact Angle (double-row bearing)	Back-to-back (O)
Matched Arrangement	No
Universal Matching Bearing	No
Axial Internal Clearance	C3
Bearing Material	Bearing steel
Coating	Without
Sealing	Seal on both sides
Sealing Type	Contact
Lubricant	None
Relubrication Feature	Without
Berat (Kg)	1.2
Tanggal Produk Terdaftar	26 August 2020
Terakhir Diperbaharui	21 July 2025

Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini

Informasi Produk

Description

Bearing data
- Tolerances: Normal, P6, P5
- Internal clearance: table, drawing no

Bearing interfaces
- Seat tolerances for standard conditions
- Tolerances and resultant fit

Warning

Image may differ from product. See technical specification for details.

Feature

- High-speed capability
- Accommodate relatively high radial loads, high axial loads in both directions and tilting moments
- Suitable where a stiff bearing arrangement is required
- Require less axial space than equivalent pair of single row angular contact ball bearings
- Integral sealing prolongs bearing service life
