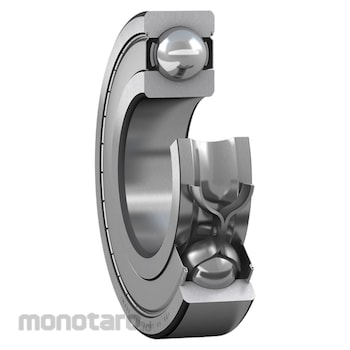

SKF Deep Groove Ball Bearing Single Row with Seals 2Z Type (Laher) 628/6-2Z 1pc

Name: SKF Deep Groove Ball Bearing Single Row with Seals 2Z Type (Laher) 628/6-2Z 1pc
Brand: SKF
SKU: S017163439
Price: 129900 IDR
Availability: InStock
Rating: 100 (2 reviews)

#Nomor SKU S017163439

Wishlist

Rating:

100% of 100

(2)

2 Ulasan

Spesifikasi Produk

Model Number	628/6-2Z
Unit	1pc
Bore Diameter d (mm)	6
Outside Diameter D (mm)	13
Width B (mm)	5
Dimension D1 (mm)	7.4
Recess Diameter D2 (mm)	11.7
Dimensions r1,2 (mm)	min. 0.15
Diameter of Shaft Abutment da (mm)	min. 6.8-7.2
Diameter of Housing Abutment Da (mm)	max. 12.2
Dimensions ra (mm)	Max. 0.1
Basic Dynamic Load Rating C (kN)	0.88
Basic Static Load Rating C0 (kN)	0.35
Fatigue Load Limit (kN)	0.015
Reference Speed (rpm)	110000
Limiting Speed (rpm)	53000
Races the Number of Columns	Single Row
Body Material	Bearing Steel
Bearing Ring Shape	Deep Groove Ball Bearings
Shield Shape	Both Sides Steel Plate Striking Shield
Bore Type	Cylindric
Cage	Sheet Metal
Radial Internal Clearance	CN
Lubricant	Grease
Berat (Kg)	0.1
Tanggal Produk Terdaftar	26 August 2020
Terakhir Diperbaharui	13 January 2026

Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini

Informasi Produk

Description

628/6-2Z
SKF Explorer
Deep groove ball bearings
Bearing data
- Tolerances : Normal (metric) , P6 , P5 , Normal (inch)
- Radial internal clearance : Matched bearing pairs , Stainless steel d < 10 mm , Other bearings

Bearing interfaces
- Seat tolerances for standard conditions
- Tolerances and resultant fits

Warning

Image may differ from product. See the technical specification for details.

Feature

- Integral sealing prolongs bearing service life
- Simple, versatile and robust design
- Low friction and high-speed capability
- Accommodate radial and axial loads in both directions
- Require little maintenance
