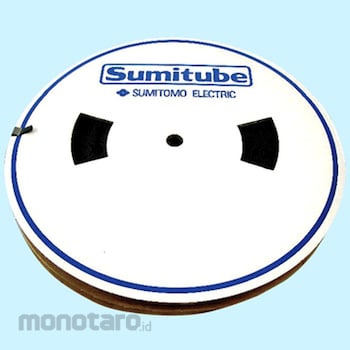

Sumitomo Electric Sumitube A 4x0.2 Transparent 1roll

Name: Sumitomo Electric Sumitube A 4x0.2 Transparent 1roll
Brand: Sumitomo Electric
SKU: S016331211
Price: 979900 IDR
Availability: InStock

#Nomor SKU S016331211

Wishlist

0 Ulasan

Spesifikasi Produk

Model Number	4x0.2
Unit	1roll
Construction	Single layer
Elongation (%)	200 or more
RoHS Directive	10 substances
Tensile Strength (MPa)	10.4 or higher
Material	Electron beam crosslinked soft polyolefin resin
Volume Resistivity (ohm.cm)	1.0x1016 or more
Conformity Standard	Sumitomo Electric Fine Polymer Specifications (Specification number R4-0180), RoHS compliant product
Color	Transparent
Water Absorption (%)	0.10 or less (23 degrees Celsiusx24 hours)
Inner Diameter (phi mm)	4.60 +/- 0.30 before contraction 2.30 after contraction
Shrinkage Factor (%)	Inner diameter shrinkage rate/40% or more Length change rate/-15% or more
Name (mm)	4x0.2
Continuous Operating Temperature (°C)	-55 to 105
Length (m)	100
Withstand Voltage	AC2.5kVx60 seconds, no destruction
Characteristic	Oil resistance, chemical resistance, insulation
Ratio	1.5:1
Wall Thickness (mm)	Before shrinkage/0.20 (reference value) After shrinkage/0.4
Shrink Temperature	115 degrees Celsius or higher
Shrink Completion Temperature (°C)	115
M Code	09681621
Berat (Kg)	0.6
Tanggal Produk Terdaftar	26 August 2020
Terakhir Diperbaharui	02 April 2026

Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini

Informasi Produk

Description

Insulation, protection and reinforcement of wire ends and wire connections.
Color identification and bundling of electric wires.
Insulation and protection of resistors and capacitors.

Warning

- Please confirm the size information and other product details on Attribute Information then place an order.
- Image on this page only as Representative Image. It will follow the Product Information

Feature

- Excellent oil and chemical resistance.
