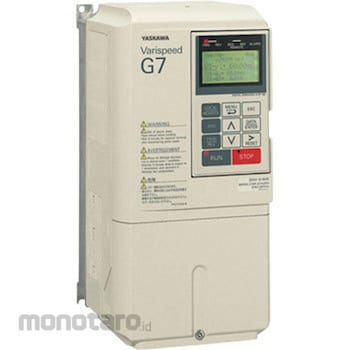

Yaskawa Inverter Closed Wall Hanging CIMR-G7A40111 1pc

Name: Yaskawa Inverter Closed Wall Hanging CIMR-G7A40111 1pc
Brand: Yaskawa
SKU: S013197056
Price: 54999900 IDR
Availability: InStock

#Nomor SKU S013197056

Wishlist

0 Ulasan

Spesifikasi Produk

Model Number	CIMR-G7A40111
Unit	1pc
Rated Voltage (V)	Three-phase AC power supply: 380/400/415/440/460/480 (50 / 60Hz), DC power supply: 510-680
Output voltage (V)	Maximum: three-phase 380/400/415/440/460/480 (supports input voltage)
Kegunaan	Paper processing / fan / pump, transportation / transportation, metal machine tools, public facilities, medical instruments, living environment facilities, food processing machines
Display	Indication during charging: Displayed until the main circuit DC voltage drops to about 50 V or less
Rated Output Current (A)	27
accuracy(%)	Torque: ± 5
Frequency Control (Hz)	0.01 to 400
Rated Input Current (A)	32
Allowable Voltage fluctuation	+10%, -15%
Ambient Temperature (°C)	-10 to +40
Rated Output (kVA)	21
Frequency Setting Resolution	Digital command 0.01 Hz, analog command 0.03 Hz / 60 Hz (11 bits + sign)
Frequency Accuracy	Temperature fluctuation: Digital command ± 0.01% (-10 to + 40°C), analog command ± 0.1% (25°C ± 10°C)
Starting Torque	150% / 0.3Hz (Vector control without PG), 150% / 0 (min -1 (Vector control with PG)
Stall Prevention Operation Level	Stall prevention during acceleration / deceleration, stall prevention during operation
Maximum Applicable Motor Capacity (kW)	11
Output Frequency Resolution (Hz)	0.001 (Calculation resolution)
Frequency Setting Signal	-10 to 10V, 0 to 10V, 4 to 20mA, pulse train
Overload	150% of rated output current for 1 minute, 200% for 0.5 second
M Code	32010607
Berat (Kg)	10.0
Tanggal Produk Terdaftar	10 January 2020
Terakhir Diperbaharui	01 April 2026
