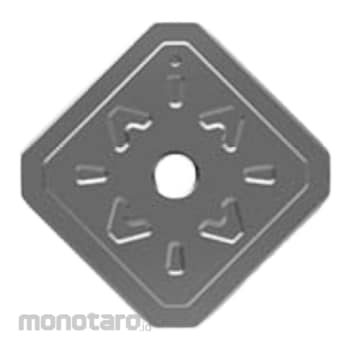

YG1 Face Milling Inserts SDKN 4 Corners ISO 12000286 SDKN 1504 AETN-GW -YG602 1pack(10pcs)

Name: YG1 Face Milling Inserts SDKN 4 Corners ISO 12000286 SDKN 1504 AETN-GW -YG602 1pack(10pcs)
Brand: YG1
SKU: S013004668
Price: 1399900 IDR
Availability: InStock

#Nomor SKU S013004668

Wishlist

0 Ulasan

Spesifikasi Produk

Model Number	12000286
Unit	1pack(10pcs)
EDP Number	12000286
Designation	SDKN 1504 AETN
Corner Radius (RE) (mm)	1.3
Feed per tooth (Fx) (mm/tooth)	0.22 ~ 0.40
Dimensions Bs (mm)	2.05
Angle (As) (Degree)	15°
Inner Circle (IC) (mm)	15.88
INSD (mm)	4.76
Chipbreaker	GW
Grade Coating	YG602
Berat (Kg)	0.5
Tanggal Produk Terdaftar	23 December 2019
Terakhir Diperbaharui	27 May 2025

Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini

Informasi Produk

Description

Universal grade for General Drilling Application
• Ultra Dense PVD Coating with optimal thermal resistance & strength
• Sub-Micron substrate designed for demanding application
For Aplication :
P (Steel ) = P20-P35
M (stainless steel ) = M20-M40
K (Cast Iron) = K20-K40

Feature :
• Side Milling
• Slotting
• Die -Sinking
• Facing

Warning

- Please confirm product details on Attribute Information then place an order. - Image on this page only as Representative Image. It will follow the description and model number. - this product is Replacement Parts
