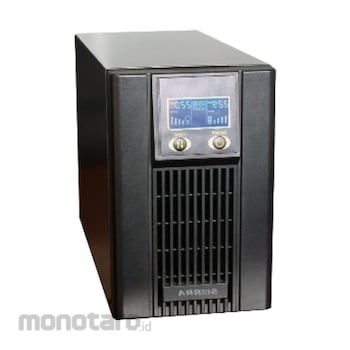

SIERRA UPS BH Series 0.8 PF - Tower Form Factor BH10S 36V DC 1unit

Name: SIERRA UPS BH Series 0.8 PF - Tower Form Factor BH10S 36V DC 1unit
Brand: SIERRA
SKU: S011463030
Price: 5899900 IDR
Availability: OutOfStock

#Nomor SKU S011463030

Wishlist

0 Ulasan

Spesifikasi Produk

Model Number	BH10S
Unit	1unit
Dimensions (mm)	355x145x220
Type	1K Standard Backup 1/1 HF Tower
Output Power Factor	0.8
Backup Time (minute)	5 - 15
Phase-in	1
Phase-out	1
BAT Voltage (V)	36 DC
Berat (Kg)	2.8
Tanggal Produk Terdaftar	11 September 2019
Terakhir Diperbaharui	27 May 2025

Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini

Informasi Produk

Description

Display : LCD Display, UPS Operational Status, BAT Fault, other fault information Rectifier Specification Input Voltage Range 1000VA - 3000VA: 115 - 300 VAC Input Voltage Range 6000VA - 10000VA: 175 - 280 VAC Input Voltage Range 10000VA - 20000VA: 304 - 478 VAC Input Frequency Range : 45 - 65 Hz ± 10% Output Specification Output Voltage (AC mode) : 220 Vac Output PF : 0.8 Output Voltage Regulation : 220 Vac ± 1% (Static Load) ; 220Vac ± 2% (50-0% Sudden Change) ; 220Vac ± 3% (100-0% Sudden Change) Output Frequency (BAT mode) : 50Hz ± 0.2% Bypass Specification Static Bypass Transfer Time : 0ms Static Bypass Range : 80Vac ± 5% ~ 285Vac ± 5% Bypass -> INV Transfer Time : 2ms BAT Parameters Type : Sealed Lead Acid Maintenance Free Battery Backup Time : 5 - 15 Minutes 1KVA/0.8KW,HF Tower, BAT Voltage:36VDC,1 phase in/1 phase out, with BAT.
