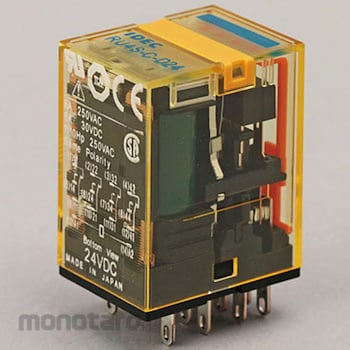

IDEC Universal Relay RU4S-C-DC24V 4 Pole 1pc
Rp109.900
Persediaan
Spesifikasi Produk
| Model Number | RU4S-C-DC24V |
|---|---|
| Unit | 1pc |
| Type | Universal Relay |
| Terminal Shape | Solder Terminal |
| Coil Rated Voltage (V) | DC24 |
| Number of Poles | 4 |
| Coil Resistance (ohm) | 605 ± 10% (at 20°C) |
| Operating Ambient Temperature (°C) | -55 to +60 (however, do not freeze) |
| Operating Ambient Humidity | 5 to 85% RH (with no condensation) |
| Contact Resistance (miliΩ) | less than 50 |
| Rated Current (mA) | 44.7 (± 15%) (at 20°C) |
| Berat (Kg) | 0.1 |
| Tanggal Produk Terdaftar | 31 July 2019 |
| Terakhir Diperbaharui | 02 June 2025 |
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Bidirectional polar high brightness LED standard equipment. Lead free structure, leadless structure. Cadmium-free contact. Mechanical indicator. Marking plate UL (UL508) c-UL (CSA C22.2 No. 14) TUV (EN 61810-1) approved CE marking compliant. Vibration resistance : Durability: Frequency 10 to 55 Hz, half amplitude 0.5 mm Malfunction: Frequency 10 to 55 Hz, half amplitude 0.5 mm Withstand voltage : Between the contact circuit and operation coil: AC2500V, 1 minute between contacts circuit: AC2000V, 1 minute between the same poles contacts: 1000 VAC, 1 minute
