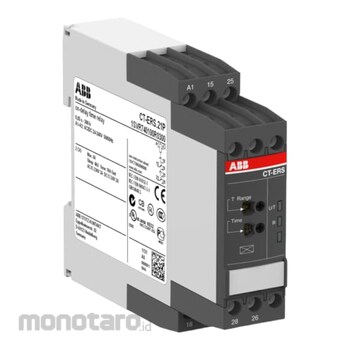

ABB Time Relays CT-ERS.21P On-Delay 24-240V AC/DC 1pc

Name: ABB Time Relays CT-ERS.21P On-Delay 24-240V AC/DC 1pc
Brand: ABB
SKU: S010889084
Price: 5899900 IDR
Availability: InStock

#Nomor SKU S010889084

Wishlist

0 Ulasan

Spesifikasi Produk

Model Number	CT-ERS.21P
Unit	1pc
Connecting Capacity (mm²)	Flexible with Ferrule 2x 0.5 to 1.5 ; Flexible with Insulated Ferrule 2x 0.5 to 1.5 ; Flexible 2x 0.5 to 1.5 ; Rigid 2x 0.5 to 1.5
Degree of Protection	Housing IP50Terminals IP20
Electrical Durability	AC-12 100000 cycle
Mechanical Durability	30000000 cycle
Minimum Switching Capacity (mA)	12 V10
Mounting on DIN Rail	TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715; TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
Mounting Position	1 to 6
Output	2 c/o (SPDT) contacts
Overvoltage Category	III
Pollution Degree	3
Product Height (mm)	85.6
Product Length (mm)	103.7
Product Width (mm)	22.5
Rated Frequency (Hz)	50; 60; DC
Rated Impulse with Stand Voltage (kV)	Input Circuit 4; Output Circuit 1/Output Circuit 2 4
Timer Relay Type	ON-Delay
Berat (Kg)	0.1
Tanggal Produk Terdaftar	03 July 2019
Terakhir Diperbaharui	27 May 2025

Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini

Informasi Produk

Description

The Ct-Ers.21P Is A Single-Function Electronic Time Relay From The Ct-S Timer Range. It Provides An On-Delay (Delay On Make) Function With 10 Time Ranges From 0.05 S To 300 H. This Time Relay Operates With A Rated Control Supply Voltage Of 24 - 240 V Ac / Dc And Has A 2 C/O (Spdt) Output With Contacts Rated At 250 V / 4 A. A Sealable Transparent Cover For Protection Against Unauthorized Changes Is Available As Accessory. The Device Offers Maintenance Free Easy Connect Technology With Push-In Terminals.
