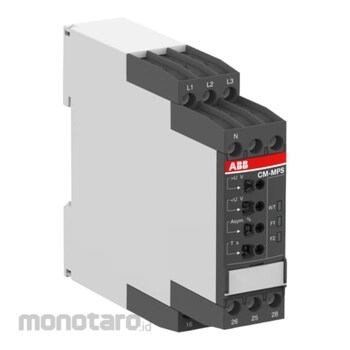

ABB Three-Phase Monitoring Relay CM-MPS.11S 1pc

Name: ABB Three-Phase Monitoring Relay CM-MPS.11S 1pc
Brand: ABB
SKU: S010888865
Price: 6399900 IDR
Availability: OutOfStock

#Nomor SKU S010888865

Wishlist

0 Ulasan

Spesifikasi Produk

Model Number	CM-MPS.11S
Unit	1pc
Degree of Protection	Housing IP50Terminals IP20
Electrical Durability	AC-12 100000 cycle
Function	Over- and undervoltage monitoringPhase failure detectionPhase unbalance detectionPhase sequence monitoringInterrupted neutral monitoring
Measuring Range (V)	(L-N) 90 to 170 AC
Mechanical Durability	30000000 cycle
Minimum Switching Capacity (mA)	24 V10
Mounting on DIN Rail	TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715; TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715
Mounting Position	1 to 6
Output	2 c/o (SPDT) contacts
Overvoltage Category	III
Pollution Degree	3
Product Height (mm)	85.6
Product Length (mm)	103.7
Product Width (mm)	22.5
Rated Frequency (Hz)	Supply Circuit 50/60
Rated Impulse with Stand Voltage (kV)	Input Circuit 6; Output Circuit 4
Berat (Kg)	0.1
Tanggal Produk Terdaftar	03 July 2019
Terakhir Diperbaharui	27 May 2025

Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini

Informasi Produk

Description

The Cm-Mps.11S Is A Multifunctional Relay From The Cm Three-Phase Monitors Range. It Operates With A Rated Control Supply Voltage / Three-Phase Measuring Voltage Of 90-170 V Ac 50/60 Hz And Has A 2 C/O (Spdt) Output With Contacts Rated At 250 V / 4 A. This Relay Is Also Suitable To Monitor Single-Phase Mains. It Monitors All Phase Parameters Such As Over/Undervoltage, Phase Unbalance, Phase Failure As Well As An Interrupted Neutral. The Corresponding Threshold Values Are Adjustable. Phase Sequence Monitoring As Well As An On Or Off Tripping Delay Are Selectable. The Tripping Delay Is Adjustable Over A Range Of Instantaneous To 30 S (0, 0.1-30 S). A Sealable Transparent Cover For Protection Against Unauthorized Changes Is Available As Accessory. The Device Offers Screw Connection Technology With Double-Chamber Cage Connection Terminals.
