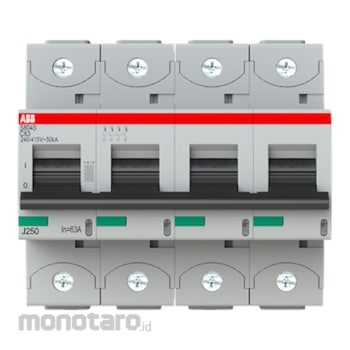

ABB High Performance MCB S804S-C63 1pc
Rp4.699.900
Persediaan
Spesifikasi Produk
| Model Number | S804S-C63 |
|---|---|
| Unit | 1pc |
| Accessories Available | Yes |
| Actuator Marking | I / O |
| Built-In Depth (t2) (mm) | 82.5 |
| Connecting Capacity (mm²) | Flexible 0 to 50 ; Rigid 0 to 70 |
| Contact Position Indication | ON / OFF / TRIP |
| Dimension Diagram | 2CCC413003C0201 |
| Electrical Endurance | 6000 cycle |
| Energy Limiting Class | 3 |
| Frequency (Hz) | 50 to 60 |
| Housing Material | Insulation group I, RAL 7035 |
| Input Voltage Type | AC/DC |
| Mechanical Endurance | 4000 cycle |
| Mounting on DIN Rail | TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715; TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715 |
| Mounting Position | Any |
| Number of Poles | 4 |
| Number of Protected Poles | 4 |
| Operational Voltage (V) | Maximum 230/400 AC; Minimum 12 AC |
| Overvoltage Category | IV |
| Power Loss (W) | 25.6 Rated Operating Conditions per Pole 6.4 |
| Berat (Kg) | 0.9 |
| Tanggal Produk Terdaftar | 03 July 2019 |
| Terakhir Diperbaharui | 27 May 2025 |
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
The S804S-C63 Is A 4-Pole High Performance Circuit Breaker With C-Characteristic, With Cage Terminal And A Rated Current Of 63 A. It Is A Current Limiting Device With A Maximum Breaking Capacity Of 50Ka At 240/415V. It Can Be Used For Voltages Up To 400/690V And In Dc As Well. It Has Two Different Tripping Mechanisms, The Thermal Tripping Mechanism For Overload Protection And The Electromechanic Tripping Mechanism For Short Circuit Protection. The S804S-C63 Complies With Iec/En 60898-1 And Iec/En 60947-2 And Allows The Use For Residential, Commercial And Industrial Applications. It Has Numerous Of Approvals, Therefore It Can Be Used Worldwide. The Extensive Range Of Accessory Makes The Use Of S804S-C63 More Comfortable. Due To The Fast Arc Extinction Of S804S-C63 Your Application Will Be Secured.
